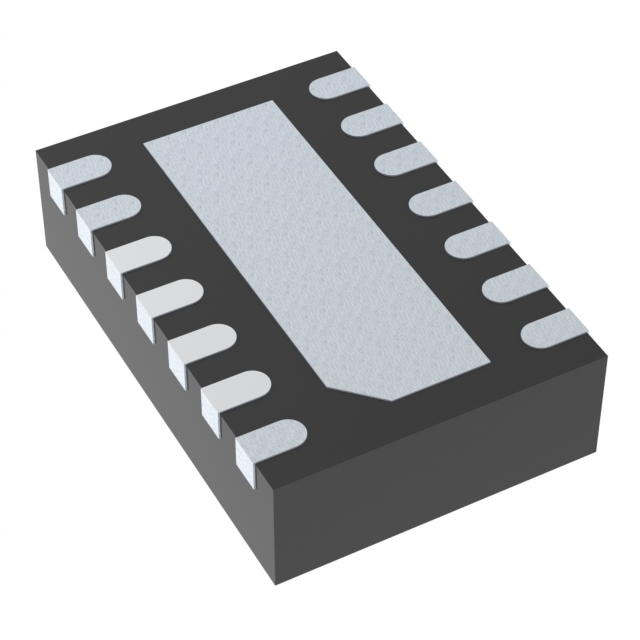

RT8547GQW
ActiveRichtek USA Inc.
IC LED DRIVER RGLTR 1.6A 14WDFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT8547GQW
ActiveRichtek USA Inc.
IC LED DRIVER RGLTR 1.6A 14WDFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT8547GQW |
|---|---|
| Applications | Camera Flash |
| Current - Output / Channel | 1.6 A |
| Frequency | 2 MHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-WDFN (3x2) |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) [Min] | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.86 | |
| Digi-Reel® | 1 | $ 0.86 | ||
| Tape & Reel (TR) | 1500 | $ 0.32 | ||
Description
General part information
RT8547 Series
LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Dimming 1.6A 14-WDFN (3x2)
