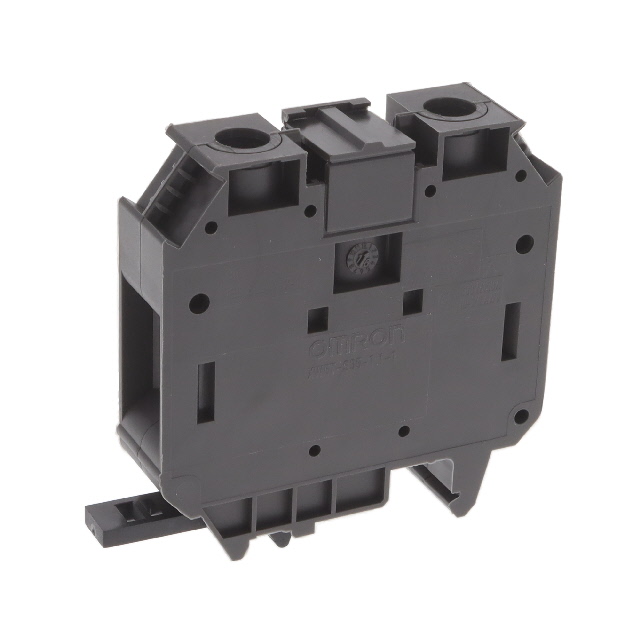

XW5T-S35-1.1-1
ActiveOmron Electronics Inc-EMC Div
TERMBLK SCREW 35MM 1:1 1TIER
Deep-Dive with AI
Search across all available documentation for this part.
XW5T-S35-1.1-1
ActiveOmron Electronics Inc-EMC Div
TERMBLK SCREW 35MM 1:1 1TIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XW5T-S35-1.1-1 |
|---|---|
| Color | Gray |
| Current - IEC | 124 A |
| Current - UL | 150 A |
| Material - Insulation | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 18 mm |
| Terminal - Width [y] | 16 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG [Max] | 10 AWG |
| Wire Gauge or Range - AWG [Min] | 1/0 |
| Wire Gauge or Range - mm² [Max] | 35 mm² |
| Wire Gauge or Range - mm² [Min] | 10 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.25 | |
| 20 | $ 9.90 | |||
| 40 | $ 8.89 | |||
| 100 | $ 8.72 | |||
| 260 | $ 7.60 | |||
| 500 | $ 7.33 | |||
Description
General part information
XW5T-S35 Series
Terminal Block Connector 2 Position Feed Through Gray 1/0-10 AWG
Documents
Technical documentation and resources
No documents available
