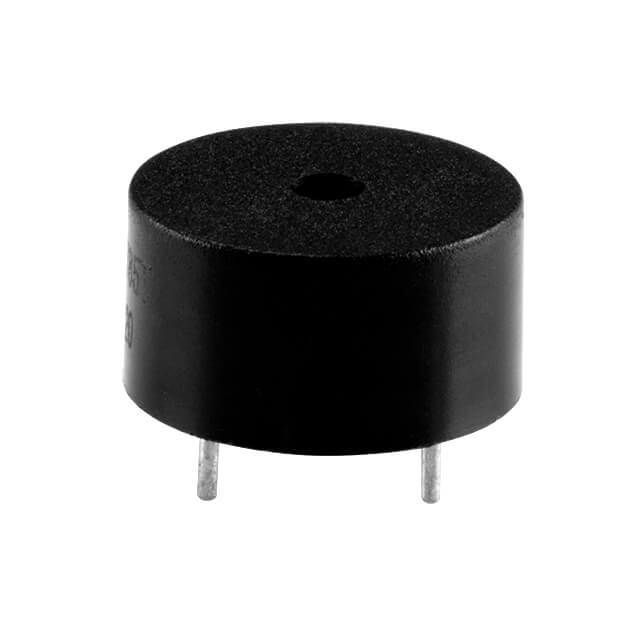

CPT-147-85T

Active

CUI Devices

BUZZER PIEZO 10V 14MM TH

Search across all available documentation for this part.

Active

CUI Devices

BUZZER PIEZO 10V 14MM TH

Technical Specifications

Parameters and characteristics for this part

Specification	CPT-147-85T

Current - Supply	7 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	4 kHz
Height - Seated (Max) [Max] [z]	0.295 in
Height - Seated (Max) [Max] [z]	7.5 mm
Input Type	Peak-Peak Signal
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Port Location	Top
Ratings	Washable
Sound Pressure Level (SPL)	85 dB
Technology	Piezo
Termination	PC Pins
Voltage - Rated	10 V
Voltage Range	20 V

Part	Voltage - Rated	Input Type	Port Location	Frequency	Voltage Range	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Driver Circuitry	Technology	Sound Pressure Level (SPL)	Ratings	Mounting Type	Termination
CUI Devices CPT-147-85T	10 V	Peak-Peak Signal	Top	4 kHz	20 V	85 °C	-40 °C	7 mA	0.295 in	7.5 mm	Externally Driven Transducer	Piezo	85 dB	Washable	Through Hole	PC Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Transducer, Externally Driven Piezo 10 V 7mA 4kHz 85dB @ 10V, 10cm Through Hole PC Pins
