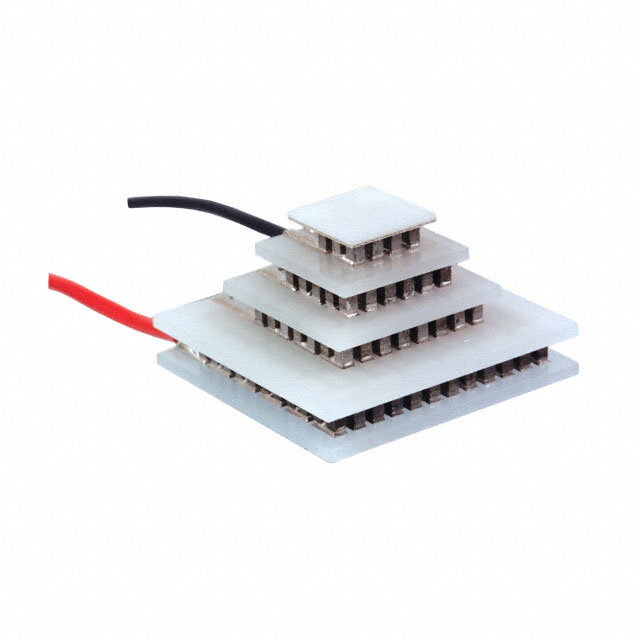

9340005-307

Active

Laird Thermal Systems, Inc.

MS4,129,10,15,22,W8

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

MS4,129,10,15,22,W8

Technical Specifications

Parameters and characteristics for this part

Part	Current - Max [Max]	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Operating Temperature	Voltage - Max [Max]	Qmax @ Th	Number of Stages	Delta Tmax @ Th	Features	Height [z]
Laird Thermal Systems, Inc. 9340005-307	1.8 A	23 mm	Square	23 mm	80 °C	8.3 V	1.9 W	4	115 °C	Lead Wires Non-Sealed	12.7 mm
Laird Thermal Systems, Inc. 9340005-304	1.8 A	23 mm	Square	23 mm	80 °C	8.3 V	1.9 W	4	115 °C	Lead Wires Non-Sealed	12.7 mm
Laird Thermal Systems, Inc. 9340005-301	1.8 A	23 mm	Square	23 mm	80 °C	8.3 V	1.9 W	4	115 °C	Lead Wires Non-Sealed	12.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Peltier Module 1.9W @ 25°C 1.8 A 80°C

Technical documentation and resources
