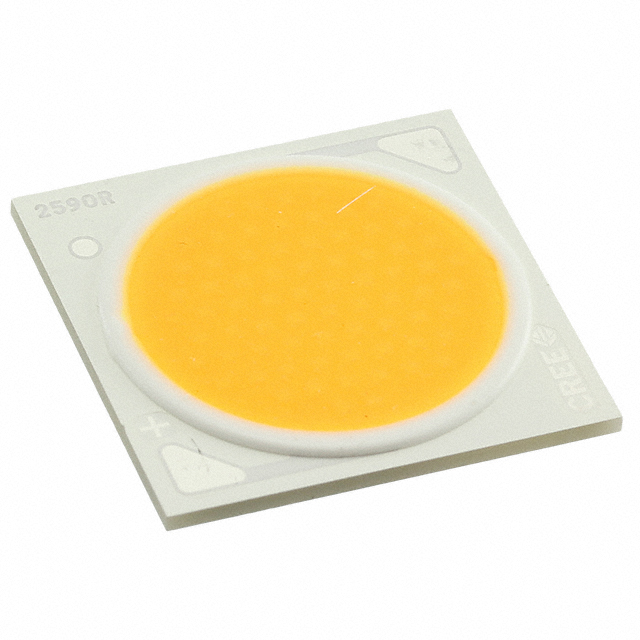

CXA2590-0000-000R0YX435F

Obsolete

Cree LED

LED COB XLAMP WARM WHT SQU 3500K

Deep-Dive with AI

Search across all available documentation for this part.

CXA2590-0000-000R0YX435F

Obsolete

Cree LED

LED COB XLAMP WARM WHT SQU 3500K

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXA2590-0000-000R0YX435F

Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	93
Current - Max [Max]	1.8 A
Current - Test	1.2 A
Height [z]	1.55 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	19 mm
Lumens/Watt @ Current - Test	75 lm/W
Luminous Flux @ Current/Temperature	6220 lm
Luminous Flux @ Current/Temperature [Max]	6430 lm
Luminous Flux @ Current/Temperature [Min]	6010 lm
Size / Dimension [x]	23.85 mm
Size / Dimension [y]	23.85 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	69 V

CXA2590 Series

Part	Type	Color	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Current - Test	Lens Type	Temperature - Test	Light Emitting Surface (LES) [diameter]	Viewing Angle	Height [z]	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	CCT (K)	Configuration
Cree LED CXA2590-0000-000R0YX435G	Chip On Board (COB)	Warm White	72 lm/W	93	6220 lm	6010 lm	6430 lm	1.2 A	Flat	85 °C	19 mm	115 °	1.55 mm	72 V	23.85 mm	23.85 mm	1.8 A	3500 K	Square
Cree LED CXA2590-0000-000R0HAB50G	Chip On Board (COB)	Cool White	101 lm/W	80	8750 lm			1.2 A	Flat	85 °C	19 mm	115 °	1.55 mm	72 V	23.85 mm	23.85 mm	1.8 A		Square
Cree LED CXA2590-0000-000R00Z430H	Chip On Board (COB)	Warm White	99 lm/W	80	8223 lm	7945 lm	8500 lm	1.2 A	Flat	85 °C	19 mm	115 °	1.55 mm	69 V	23.85 mm	23.85 mm	1.8 A	3000 K	Square
Cree LED CXA2590-0000-000R0YX435F	Chip On Board (COB)	Warm White	75 lm/W	93	6220 lm	6010 lm	6430 lm	1.2 A	Flat	85 °C	19 mm	115 °	1.55 mm	69 V	23.85 mm	23.85 mm	1.8 A		Square
Cree LED CXA2590-0000-000R00Z230F	Chip On Board (COB)	Warm White	93 lm/W	80	7668 lm			1.2 A	Flat	85 °C	19 mm	115 °	1.55 mm	69 V	23.85 mm	23.85 mm	1.8 A	3000 K	Square
Cree LED CXA2590-0000-000R0YY235H	Chip On Board (COB)	Warm White	81 lm/W	93	6670 lm	6430 lm	6910 lm	1.2 A	Flat	85 °C	19 mm	115 °	1.55 mm	69 V	23.85 mm	23.85 mm	1.8 A	3500 K	Square
Cree LED CXA2590-0000-000R00AB35G	Chip On Board (COB)	Warm White	101 lm/W	80	8750 lm			1.2 A	Flat	85 °C	19 mm	115 °	1.55 mm	72 V	23.85 mm	23.85 mm	1.8 A	3500 K	Square
Cree LED CXA2590-0000-000R0HAB50F	Chip On Board (COB)	Cool White	106 lm/W	80	8750 lm			1.2 A	Flat	85 °C	19 mm	115 °	1.55 mm	69 V	23.85 mm	23.85 mm	1.8 A	5000 K	Square
Cree LED CXA2590-0000-000R0HAB57F	Chip On Board (COB)	Cool White	106 lm/W	80	8750 lm			1.2 A	Flat	85 °C	19 mm	115 °	1.55 mm	69 V	23.85 mm	23.85 mm	1.8 A	5700 K	Square
Cree LED CXA2590-0000-000R00BB0E5	Chip On Board (COB)	Neutral White	118 lm/W	70	9750 lm	9500 lm	10000 lm	1.2 A	Flat	85 °C	19 mm	115 °	1.55 mm	69 V	23.85 mm	23.85 mm	1.8 A	4000 K	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	40	$ 47.23

Description

General part information

CXA2590 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXA2590 White, Warm Square

Documents

Technical documentation and resources

No documents available
