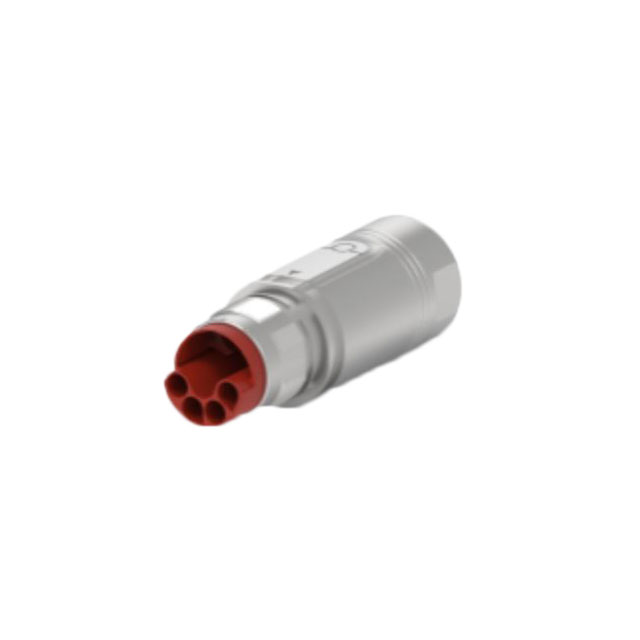

HKA407N00580100000

Active

TE Intercontec

CONN RCPT HSG MALE INLINE

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	HKA407N00580100000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Cable Clamp, Backshell
Housing Color	Silver
Includes	1 Backshell, 1 Connector, 1 Cable Clamp
Ingress Protection	IP66/IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shielding	Shielded
Type	For Male Pins

Part	Contact Shape	Housing Color	Shielding	Note	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Material Flammability Rating	Shell Finish	Mounting Type	Shell Material	Features	Ingress Protection	Orientation	Includes	Connector Type
TE Intercontec HKA407N00580100000	Circular	Silver	Shielded	Contacts Not Included	Push-Twist	-20 C	130 °C	For Male Pins	UL94 V-0	Nickel	Free Hanging (In-Line)	Zinc Die Cast	Backshell Cable Clamp	IP66/IP67	Keyed	1 Backshell 1 Cable Clamp 1 Connector	Receptacle Housing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell, Cable Clamp
