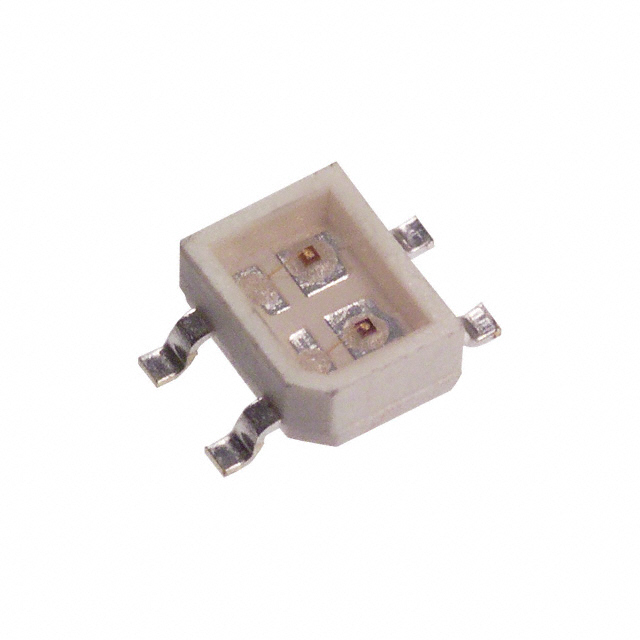

SSL-LXA3025IGC-TR
ActiveLumex Opto/Components Inc.
LED GREEN/RED CLEAR AXIAL SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SSL-LXA3025IGC-TR
ActiveLumex Opto/Components Inc.
LED GREEN/RED CLEAR AXIAL SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SSL-LXA3025IGC-TR |
|---|---|
| Color | Red, Green |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] | 1.5 mm |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 12 mcd |
| Millicandela Rating [custom] | 20 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Size / Dimension [x] | 3.4 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | Axial |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V, 2 V |
| Wavelength - Peak | 565 nm, 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.73 | |
| 10 | $ 0.48 | |||
| 100 | $ 0.31 | |||
| Digi-Reel® | 1 | $ 0.73 | ||
| 10 | $ 0.48 | |||
| 100 | $ 0.31 | |||
| Tape & Reel (TR) | 1000 | $ 0.25 | ||
| 2000 | $ 0.23 | |||
| 5000 | $ 0.22 | |||
| 10000 | $ 0.22 | |||
| 25000 | $ 0.21 | |||
Description
General part information
SSL-LXA3025 Series
Green, Red LED Indication - Discrete 2.2V Green, 2V Red 4-SMD, Gull Wing
