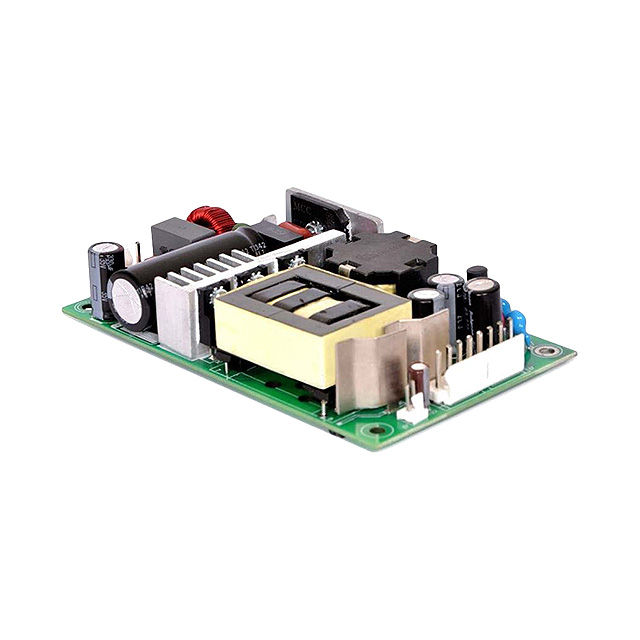

ABC350-1024L

Obsolete

EOS Power India Private Ltd

AC/DC CONVERTER 24V 200W

Search across all available documentation for this part.

Obsolete

EOS Power India Private Ltd

AC/DC CONVERTER 24V 200W

Technical Specifications

Parameters and characteristics for this part

Specification	ABC350-1024L

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	8.333 A
Efficiency	94 %
Features	DC Input Capable, PFC, Standby Output, Universal Input, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	350 W
Power (Watts)	200 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1 "
Size / Dimension [z]	25.4 mm
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Voltage - Isolation	Type	Number of Outputs	Voltage - Output 1	Efficiency	Features	Minimum Load Required	Current - Output 1	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts) [Max]	Power (Watts)	Applications	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)
EOS Power India Private Ltd ABC350-1T15L	3000 V	Open Frame	1	15 V	92 %	Adjustable Output DC Input Capable PFC Standby Output Universal Input		12 A	CE	90 VAC	264 VAC	275 W	160 W	ITE (Commercial)	Chassis Mount	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm
EOS Power India Private Ltd ABC350-1024L	3000 V	Open Frame	1	24 V	94 %	Adjustable Output DC Input Capable PFC Standby Output Universal Input		8.333 A	CE				200 W	ITE (Commercial)	Chassis Mount	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	350 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input

Technical documentation and resources

No documents available
