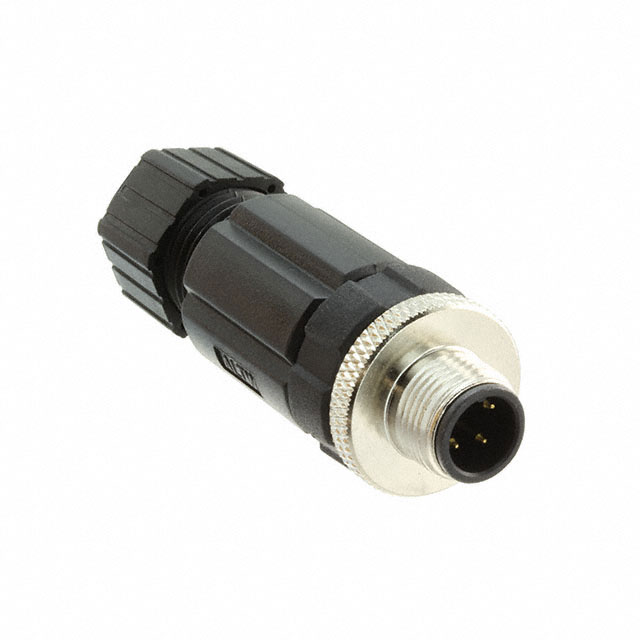

12-03BMMB-SL7001

Obsolete

Amphenol LTW

CONN PLUG MALE 3POS GOLD SCREW

Search across all available documentation for this part.

Obsolete

Amphenol LTW

CONN PLUG MALE 3POS GOLD SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	12-03BMMB-SL7001

Backshell Material, Plating	Polypropylene (PP)
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-3
Shielding	Unshielded
Termination	Screw

Part	Color	Ingress Protection	Backshell Material, Plating	Mounting Type	Shell Material	Shielding	Shell Finish	Contact Material	Features	Contact Finish - Mating	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Current Rating (Amps)	Termination	Connector Type	Shell Size - Insert	Orientation
Amphenol LTW 12-03BMMB-SL7001	Black Silver	IP67 - Dust Tight Waterproof	Polypropylene (PP)	Free Hanging (In-Line)	Brass	Unshielded	Nickel	Copper Alloy	Backshell	Gold	Metal	85 °C	-40 °C	Polyamide (PA) Nylon Glass Filled	4 A	Screw	Male Pins Plug	M12-3	A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Circular Connector Plug, Male Pins Screw
