6ES72141AG400XB0
ActiveAUTOMATION - S7-1200 CPUS
Deep-Dive with AI
Search across all available documentation for this part.
6ES72141AG400XB0
ActiveAUTOMATION - S7-1200 CPUS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6ES72141AG400XB0 |
|---|---|
| Approval Agency | KC, CE, cULus, UL |
| Communications | Ethernet, RJ45 |
| Expandable | False |
| Memory Size | 100 kB |
| Mounting Type | DIN Rail |
| Number of Inputs and Type | 14 |
| Number of Inputs and Type | Digital |
| Number of Outputs and Type [custom] | 10 |
| Number of Outputs and Type [custom] | Solid State |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Voltage - Supply [Max] | 28.8 VDC |
| Voltage - Supply [Min] | 20.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 670.66 | |
| 10 | $ 607.23 | |||
Description
General part information
6ES72141 Series

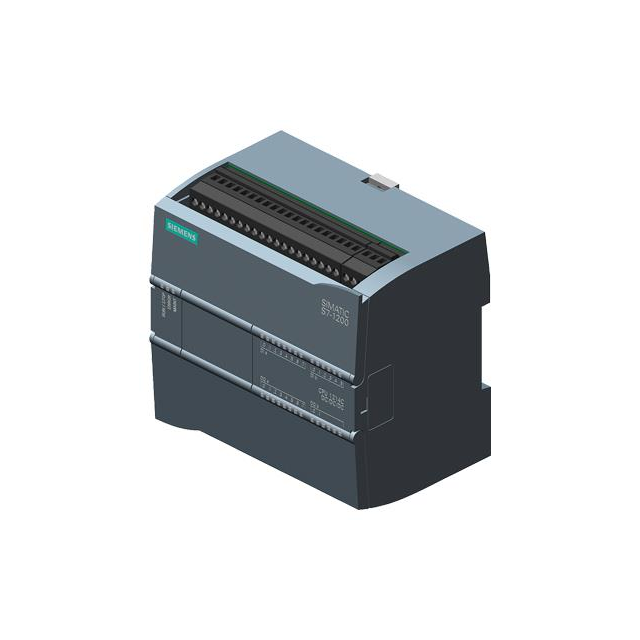

The Siemens 6ES72141AG400XB0 is a compact CPU from the SIMATIC S7-1200 series, designated as CPU 1214C DC/DC/DC. This controller is engineered for applications including HVAC, building automation, motion control, and small stand-alone systems. It supports STEP 7 V17 or higher and programming languages such as LAD, FBD, and SCL, compliant with IEC 61131 standards. With a scan time of 0.08 µs/bit, it ensures high-speed processing. The unit uses PROFINET interface and features 14 digital inputs, 10 digital outputs, and 2 analog inputs, supporting 0-10 V. It includes a real-time clock and offers memory sizes of 100 KB RAM and 4 MB load memory. Certified with CE, UL, and FM approvals, its design operates within a wide temperature range and is IP20 rated.
