Q-0402I0003006i

Active

Amphenol Custom Cable

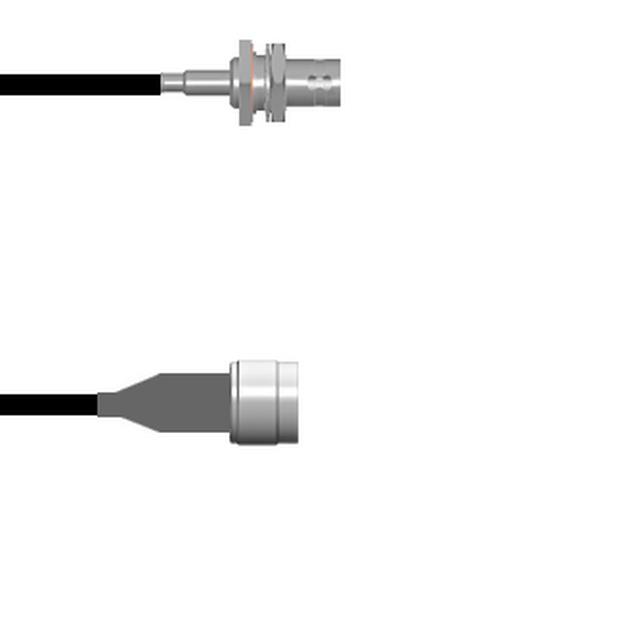

CBL ASSY BNC-NTYPE JACK-PLUG 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0402I0003006i

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE JACK-PLUG 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0402I0003006i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0402I0 Series

Part	Features	2nd Connector	2nd Contact Gender	Overall Impedance	1st Connector Mounting Feature	1st Connector Mounting Type	1st Contact Gender	2nd Connector Mounting Type	Cable Type	Style	Color	1st Connector	Frequency - Max [Max]	Length	Length	Length
Amphenol Custom Cable Q-0402I0005009i	Shielded	N-Type Plug	Male	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	RG-316	BNC to N-Type	Copper	BNC Jack	4 GHz	9 "	228.6 mm
Amphenol Custom Cable Q-0402I0005060i	Shielded	N-Type Plug	Male	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	RG-316	BNC to N-Type	Copper	BNC Jack	4 GHz	5 '	1.5 m	5 ft
Amphenol Custom Cable Q-0402I0003006i	Shielded	N-Type Plug	Male	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	RG-174	BNC to N-Type	Black	BNC Jack	4 GHz	6 in	152.4 mm
Amphenol Custom Cable Q-0402I0003072i	Shielded	N-Type Plug	Male	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	RG-174	BNC to N-Type	Black	BNC Jack	4 GHz	72 in	1.8 m	6 ft
Amphenol Custom Cable Q-0402I0003003i	Shielded	N-Type Plug	Male	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	RG-174	BNC to N-Type	Black	BNC Jack	4 GHz	3 in	76.2 mm
Amphenol Custom Cable Q-0402I0003036i	Shielded	N-Type Plug	Male	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	RG-174	BNC to N-Type	Black	BNC Jack	4 GHz	36 in	91.44 cm
Amphenol Custom Cable Q-0402I00051.5M	Shielded	N-Type Plug	Male	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	RG-316	BNC to N-Type	Copper	BNC Jack	4 GHz	59.1 in	1.5 m	4.9 ft
Amphenol Custom Cable Q-0402I0005003M	Shielded	N-Type Plug	Male	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	RG-316	BNC to N-Type	Copper	BNC Jack	4 GHz	118.1 in	3 m	9.8 '
Amphenol Custom Cable Q-0402I0005084i	Shielded	N-Type Plug	Male	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	RG-316	BNC to N-Type	Copper	BNC Jack	4 GHz	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-0402I0005036i	Shielded	N-Type Plug	Male	50 Ohms	Bulkhead - Front Side Nut	Panel Mount	Female	Free Hanging (In-Line)	RG-316	BNC to N-Type	Copper	BNC Jack	4 GHz	36 in	91.44 cm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 88.49
		25	$ 86.77
		50	$ 85.04
		100	$ 83.32
		250	$ 81.59

Description

General part information

Q-0402I0 Series

Cable Assembly Coaxial BNC to N-Type RG-174 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
