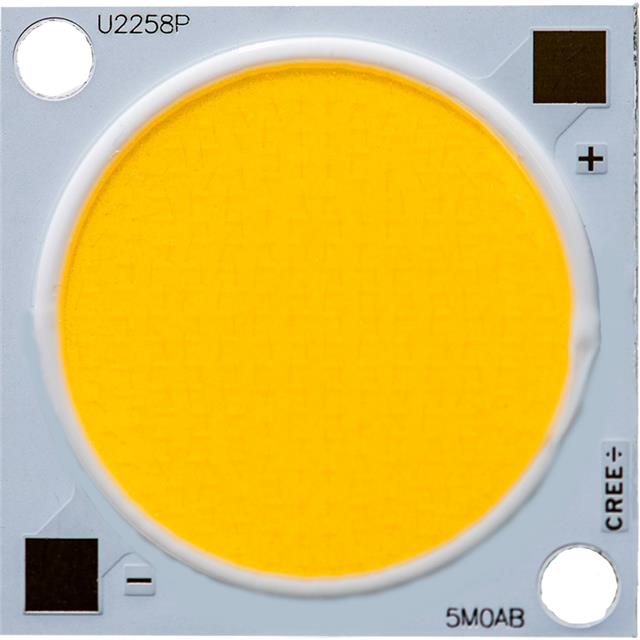

CMU2258-0000-000P0H0A22G

Active

Cree LED

LED COB XLAMP WARM WHT SQU 2200K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMU2258-0000-000P0H0A22G

Active

Cree LED

LED COB XLAMP WARM WHT SQU 2200K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMU2258-0000-000P0H0A22G

CCT (K)	2200 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	2.88 A
Current - Test	1.08 A
Height [z]	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	22 mm
Luminous Flux @ Current/Temperature	7297 lm
Size / Dimension [x]	28 mm
Size / Dimension [y]	28 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	50.5 V

CMU2258 Series

...

Part	Color	Lens Type	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Luminous Flux @ Current/Temperature	Type	Current - Test	Height [z]	Temperature - Test	Light Emitting Surface (LES) [diameter]	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	CCT (K)	Viewing Angle	Configuration
Cree LED CMU2258-0000-000P0U0A30H	Warm White	Flat	90	28 mm	28 mm	2.88 A	7519 lm	Chip On Board (COB)	1.08 A	1.5 mm	85 °C	22 mm	138 lm/W	50.5 V	3000 K	115 °	Square
Cree LED CMU2258-0000-000P0H0A57G	Cool White	Flat	80	28 mm	28 mm	2.88 A	8975 lm	Chip On Board (COB)	1.08 A	1.5 mm	85 °C	22 mm		50.5 V	5700 K	115 °	Square
Cree LED CMU2258-R040-000P0U0A35G	Warm White	Flat	90	28 mm	28 mm	2.88 A	7619 lm	Chip On Board (COB)	1.08 A	1.5 mm	85 °C	22 mm	140 lm/W	50.5 V	3500 K	115 °	Square
Cree LED CMU2258-0000-000P0Z0AL7C		Flat	95	28 mm	28 mm	2.88 A		Chip On Board (COB)	1.08 A	1.5 mm	85 °C	22 mm		50.5 V		115 °	Square
Cree LED CMU2258-R040-000P0H0A22G	Warm White	Flat	80	28 mm	28 mm	2.88 A	7297 lm	Chip On Board (COB)	1.08 A	1.5 mm	85 °C	22 mm		50.5 V	2200 K	115 °	Square
Cree LED CMU2258-0000-000P0H0A22G	Warm White	Flat	80	28 mm	28 mm	2.88 A	7297 lm	Chip On Board (COB)	1.08 A	1.5 mm	85 °C	22 mm		50.5 V	2200 K	115 °	Square
Cree LED CMU2258-R040-000P0U0A30U	Warm White	Flat	90	28 mm	28 mm	2.88 A	7068 lm	Chip On Board (COB)	1.08 A	1.5 mm	85 °C	22 mm	130 lm/W	50.5 V	3000 K	115 °	Square
Cree LED CMU2258-0000-000P0H0A30H	Warm White	Flat	80	28 mm	28 mm	2.88 A	8651 lm	Chip On Board (COB)	1.08 A	1.5 mm	85 °C	22 mm	159 lm/W	50.5 V	3000 K	115 °	Square
Cree LED CMU2258-R040-000P0Z0A30H	Warm White	Flat	95	28 mm	28 mm	2.88 A		Chip On Board (COB)	1.08 A	1.5 mm	85 °C	22 mm		50.5 V	3000 K	115 °	Square
Cree LED CMU2258-0000-000P0U0A27G	Warm White	Flat	90	28 mm	28 mm	2.88 A	7227 lm	Chip On Board (COB)	1.08 A	1.5 mm	85 °C	22 mm	133 lm/W	50.5 V	2700 K	115 °	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 15.42

Description

General part information

CMU2258 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMU2258 White, Warm Square
