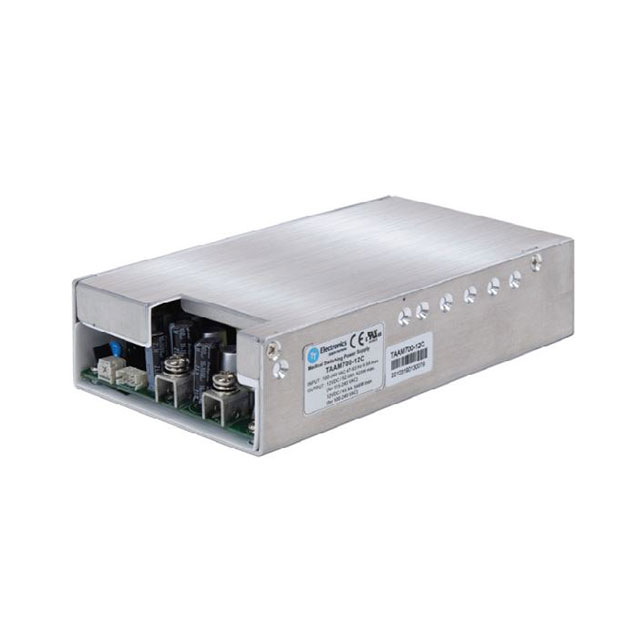

TAAM700-14C
ActiveTT Electronics/Power Partners Inc.
AC/DC CONVERTER 24V 700W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TAAM700-14C
ActiveTT Electronics/Power Partners Inc.
AC/DC CONVERTER 24V 700W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TAAM700-14C |
|---|---|
| Applications | Medical |
| Approval Agency | CE, cURus, UKCA, CB |
| Current - Output 1 | 29.16 A |
| Efficiency | 91 % |
| Features | PFC, Load Sharing, Universal Input, Remote On/Off, Standby Output, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 700 W |
| Size / Dimension [x] | 170.2 mm |
| Size / Dimension [x] | 6.7 in |
| Size / Dimension [y] | 3.66 in |
| Size / Dimension [y] | 93 mm |
| Size / Dimension [z] | 40.9 mm |
| Size / Dimension [z] | 1.61 " |
| Standard Number | 60601-1 |
| Type | Enclosed |
| Voltage - Isolation | 5.656 kV |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 262.75 | |
| 5 | $ 254.53 | |||
| 10 | $ 246.32 | |||
| 25 | $ 238.11 | |||
Description
General part information
TAAM700 Series
Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
