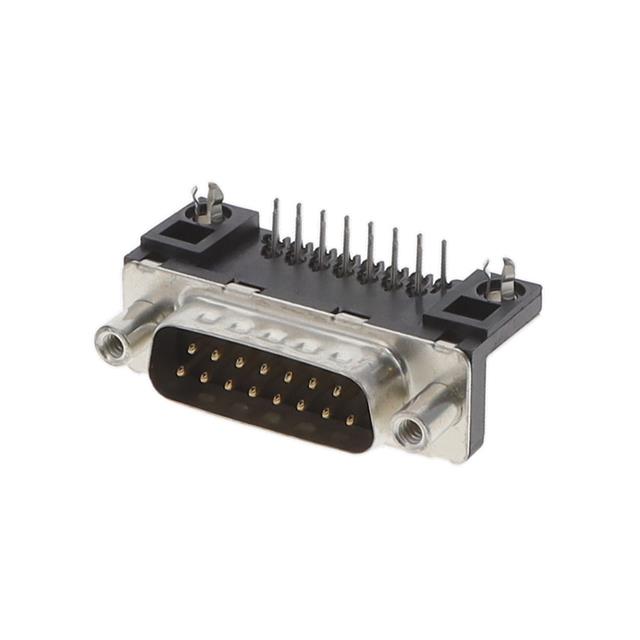

LD15P13A4GV00LF

Active

Amphenol ICC (FCI)

CONN D-SUB PLUG 15POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN D-SUB PLUG 15POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	LD15P13A4GV00LF

Backset Spacing	0.409 in
Backset Spacing	10.4 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	250 VDC

Part	Color	Connector Style	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Material	Shell Size, Connector Layout	Contact Type	Number of Positions	Material Flammability Rating	Features	Connector Type	Termination	Shell Material, Finish	Voltage Rating	Current Rating (Amps)	Backset Spacing	Backset Spacing	Number of Rows	Flange Feature
Amphenol ICC (FCI) LD15P13A4GV00LF	Black	D-Sub	Thermoplastic	105 ░C	-55 °C	Board Edge Right Angle Through Hole	Gold	Flash	Copper Alloy	2	Signal	15	UL94 V-0	Board Lock Grounding Indents	Male Pins Plug	Solder	Steel Tin-Nickel Plated	250 VDC	5 A	0.409 in	10.4 mm	2	Female Screwlock (4-40) Mating Side
