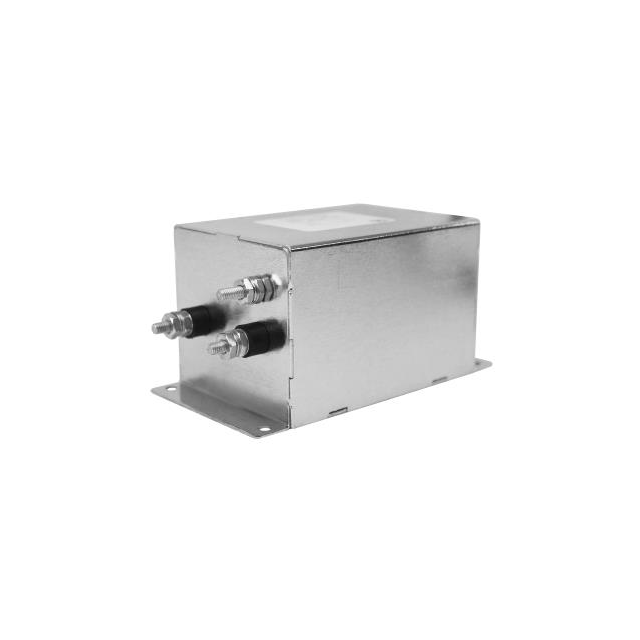

SE15 S
ActiveAstrodyne TDI
LINE FILTER 250VAC 15A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SE15 S
ActiveAstrodyne TDI
LINE FILTER 250VAC 15A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SE15 S |
|---|---|
| Applications | General Purpose |
| Approval Agency | CE, cURus, CSA, SEMKO |
| Configuration | Two Stage |
| Current | 15 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Termination Style | Threaded Post (10-32) |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 89.55 | |
Description
General part information
SE15 Series
Single Phase EMC/EMI Line Filter 15 A 250V 50/60Hz Two Stage Threaded Post (10-32)
