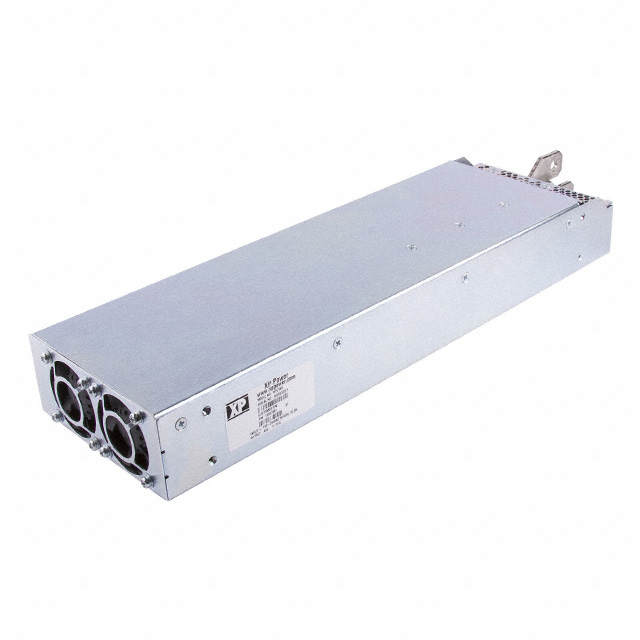

HPU1K5PS12

Active

XP POWER

AC/DC CONVERTER 12V 1200W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 12V 1200W

Technical Specifications

Parameters and characteristics for this part

Specification	HPU1K5PS12

Applications	ITE (Commercial)
Current - Output 1	100 A
Efficiency	90 %
Features	Universal Input, Standby Output, Adjustable Output, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	1200 W
Size / Dimension [x]	12.75 in
Size / Dimension [x]	323.9 mm
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	1.7 in
Size / Dimension [z]	43.2 mm
Standard Number	62368-1
Type	Enclosed
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Output 1	Standard Number	Current - Output 1	Mounting Type	Minimum Load Required	Features	Power (Watts)	Efficiency	Number of Outputs	Applications	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
XP POWER HPU1K5PS12	-20 °C	70 °C	Enclosed	12 V	62368-1	100 A	Chassis Mount		Adjustable Output Remote Sense Standby Output Universal Input	1200 W	90 %	1	ITE (Commercial)	4000 V	1.7 in	12.75 in	43.2 mm	4 "	323.9 mm	101.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	6	$ 1181.46

General part information

Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
