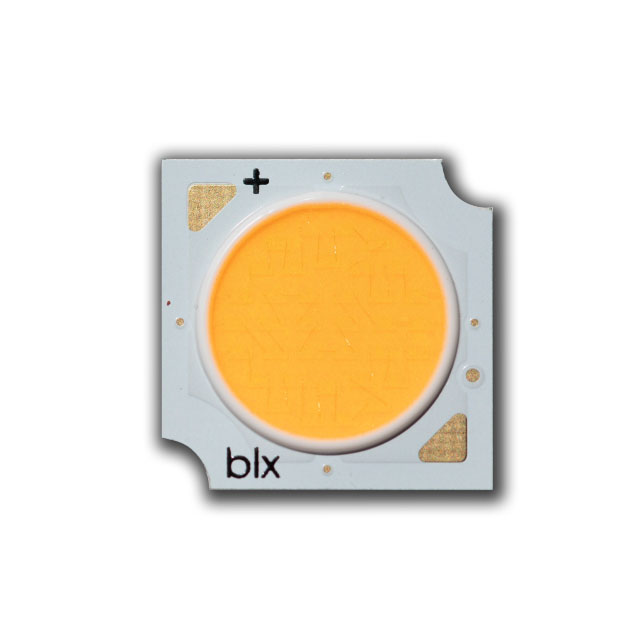

BXRE-57E1001-C-83

Active

BRIDGELUX

LED COB V10 CL WHT SQUARE 5700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRE-57E1001-C-83

Active

BRIDGELUX

LED COB V10 CL WHT SQUARE 5700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRE-57E1001-C-83

CCT (K)	5700 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	1 A
Current - Test	300 mA
Height [z]	1.65 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	10.2 mm
Lumens/Watt @ Current - Test	178 lm/W
Luminous Flux @ Current/Temperature	1641 lm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	30.7 V

BXRE-57 Series

Part	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Temperature - Test	Light Emitting Surface (LES) [diameter]	Current - Max [Max]	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	Lens Type	Configuration	Voltage - Forward (Vf) (Typ)	Height [z]	Color	Viewing Angle	Type	CCT (K)	Current - Test
BRIDGELUX BXRE-57C4001-C-73	24 mm	24 mm	157 lm/W	85 °C	19.2 mm	2.34 A	6227 lm	70	Flat	Square	34 V	1.7 mm	Cool White	120 °	Chip On Board (COB)	5700 K
BRIDGELUX BXRE-57E2001-B-73	19 mm	19 mm	156 lm/W	85 °C	14 mm	900 mA	2374 lm	80	Flat	Square	33.9 V	1.7 mm	Cool White	120 °	Chip On Board (COB)	5700 K	450 mA
BRIDGELUX BXRE-57C1001-B-73			151 lm/W	85 °C	10.2 mm	540 mA	1390 lm	70	Flat	Square	33.8 V	1.7 mm	Cool White	120 °	Chip On Board (COB)	5700 K	270 mA
BRIDGELUX BXRE-57S0801-E-74	12.5 mm	12.5 mm	131 lm/W		9 mm	350 mA	789 lm	98	Flat	Square	34.4 V	1.7 mm	Cool White	120 °	Chip On Board (COB)	5700 K	175 mA
BRIDGELUX BXRE-57E1001-C-83			178 lm/W		10.2 mm	1 A	1641 lm	80	Flat	Square	30.7 V	1.65 mm	Cool White	120 °	Chip On Board (COB)	5700 K	300 mA
BRIDGELUX BXRE-57E2001-C-74	19 mm	19 mm	156 lm/W	85 °C	14 mm	1.26 A	3322 lm	80	Flat	Square	33.9 V	1.7 mm	Cool White		Chip On Board (COB)	5700 K	630 mA
BRIDGELUX BXRE-57C6501-C-74	28 mm	28 mm	158 lm/W	85 °C	22.6 mm	2.88 A	11513 lm	70	Flat	Square	50.7 V	1.7 mm	Cool White	120 °	Chip On Board (COB)	5700 K	1.44 A
BRIDGELUX BXRE-57E1001-B-74			150 lm/W	85 °C	10.2 mm	540 mA	1378 lm	80	Flat	Square	34 V	1.7 mm	Cool White		Chip On Board (COB)	5700 K	270 mA
BRIDGELUX BXRE-57E1001-B-73			150 lm/W	85 °C	10.2 mm	540 mA	1378 lm	80	Flat	Square	33.8 V	1.7 mm	Cool White	120 °	Chip On Board (COB)	5700 K	270 mA
BRIDGELUX BXRE-57C4001-B-73	24 mm	24 mm	157 lm/W	85 °C	19.2 mm	1.8 A	4789 lm	70	Flat	Square	34 V	1.7 mm	Cool White	120 °	Chip On Board (COB)	5700 K	900 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.67
		10	$ 2.59
		100	$ 2.17

Description

General part information

BXRE-57 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 V10 Array White, Cool Square
