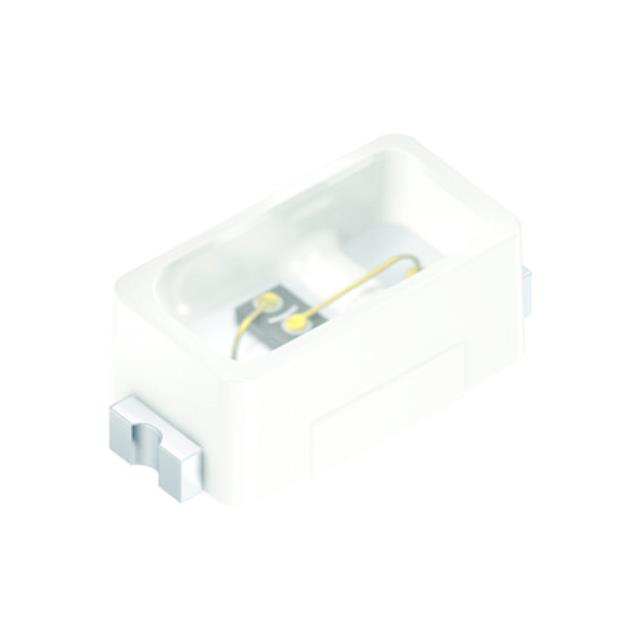

KB DELPS2.12-MHNI-24-U515-2-S
Activeams-OSRAM USA INC.
LED BLUE CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KB DELPS2.12-MHNI-24-U515-2-S
Activeams-OSRAM USA INC.
LED BLUE CLEAR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KB DELPS2.12-MHNI-24-U515-2-S |
|---|---|
| Color | Blue |
| Current - Test | 10 mA |
| Height (Max) [Max] [z] | 0.7 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.23 mm |
| Lens Size [y] | 0.6 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Flat Leads |
| Size / Dimension [x] | 1.4 mm |
| Size / Dimension [y] | 0.8 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
| Wavelength - Dominant | 466 nm |
| Wavelength - Peak | 461 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.34 | |
| 10 | $ 0.27 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.09 | |||
| 2000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.34 | ||
| 10 | $ 0.27 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.09 | |||
| 2000 | $ 0.08 | |||
| Tape & Reel (TR) | 9000 | $ 0.07 | ||
| 18000 | $ 0.06 | |||
| 27000 | $ 0.06 | |||
| 63000 | $ 0.05 | |||
Description
General part information
KB DELPS2.12 Series
Blue 466nm LED Indication - Discrete 2.8V 2-SMD, Flat Leads
