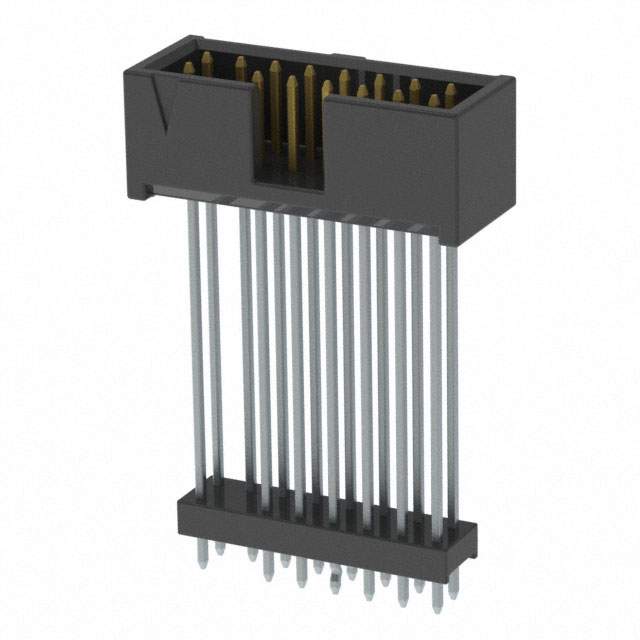

ZSS-108-09-L-D-1319-LL-13

Active

Samtec Inc.

CONN HDR .100" 16POS

Deep-Dive with AI

Search across all available documentation for this part.

ZSS-108-09-L-D-1319-LL-13

Active

Samtec Inc.

CONN HDR .100" 16POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-108-09-L-D-1319-LL-13

Connector Type	Elevated, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	0.111 in
Contact Length - Post	2.82 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	33.5 mm
Insulation Height	1.319 in
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Kinked Pin, Solder

ZSS-108 Series

...

Part	Contact Type	Fastening Type	Number of Positions	Insulation Height [z]	Insulation Height [z]	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Material	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Finish - Mating	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Connector Type	Style	Contact Material	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Shape	Insulation Color	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Number of Positions Loaded
Samtec Inc. ZSS-108-05-G-D-940
Samtec Inc. ZSS-108-03-G-D-710
Samtec Inc. ZSS-108-01-L-D-535	Male Pin	Push-Pull	16	13.59 mm	0.535 in	0.63 "	16 mm	Polyester Glass Filled	2	10 çin	0.25 çm	3 A	Gold	Tin	6.35 mm	0.25 in	Elevated Header	Board to Board Cable	Phosphor Bronze	0.1 in	2.54 mm	All	Square	Black	UL94 V-0	-55 °C	125 °C	Shrouded - 4 Wall	Keying Slot	2.54 mm	0.1 in	Through Hole	Solder	2.41 mm	0.095 in
Samtec Inc. ZSS-108-05-F-D-915	Male Pin	Push-Pull	16					Polyester Glass Filled	2	3 µin	0.076 µm	3 A	Gold	Tin	6.35 mm	0.25 in	Elevated Header	Board to Board Cable	Phosphor Bronze	0.1 in	2.54 mm	All	Square	Black	UL94 V-0	-55 °C	125 °C	Shrouded - 4 Wall	Keying Slot	2.54 mm	0.1 in	Through Hole	Solder			2.92 mm	0.115 in	1.03 in	26.16 mm
Samtec Inc. ZSS-108-03-L-D-615
Samtec Inc. ZSS-108-07-S-D-1130
Samtec Inc. ZSS-108-03-L-D-648
Samtec Inc. ZSS-108-09-L-D-1319-LL-13	Male Pin	Push-Pull	16					Polyester Glass Filled	2	10 çin	0.25 çm	3 A	Gold	Tin	6.35 mm	0.25 in	Elevated Header	Board to Board Cable	Phosphor Bronze	0.1 in	2.54 mm		Square	Black	UL94 V-0	-55 °C	125 °C	Shrouded - 4 Wall	Keying Slot	2.54 mm	0.1 in	Through Hole	Kinked Pin Solder			2.82 mm	0.111 in			33.5 mm	1.319 in	15
Samtec Inc. ZSS-108-07-S-D-1140	Male Pin	Push-Pull	16					Polyester Glass Filled	2	30 Áin	0.76 Ám	3 A	Gold	Tin	6.35 mm	0.25 in	Elevated Header	Board to Board Cable	Phosphor Bronze	0.1 in	2.54 mm	All	Square	Black	UL94 V-0	-55 °C	125 °C	Shrouded - 4 Wall	Keying Slot	2.54 mm	0.1 in	Through Hole	Solder			2.29 mm	0.09 "	1.23 in	31.24 mm	28.96 mm	1.14 in
Samtec Inc. ZSS-108-03-L-D-740

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.52

Description

General part information

ZSS-108 Series

Connector Header Through Hole 16 position 0.100" (2.54mm)
