Q-030440005009i

Active

Amphenol Custom Cable

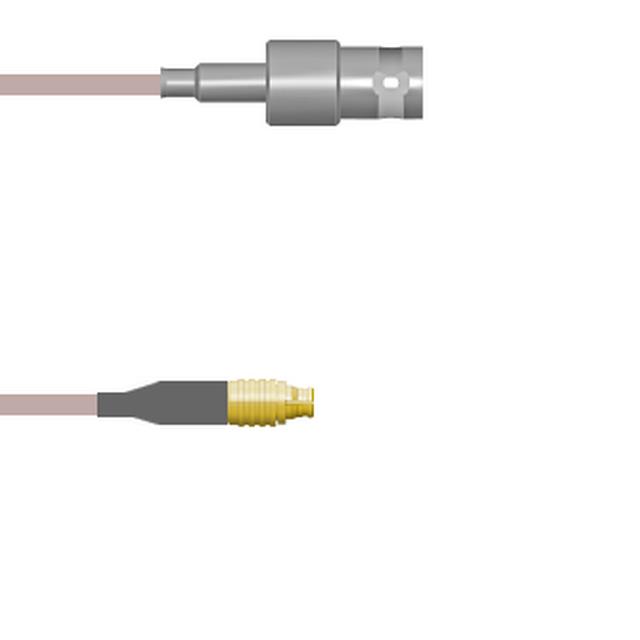

CBL ASSY BNC-SMP JACK-PLUG 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-030440005009i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMP JACK-PLUG 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-030440005009i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMP Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	BNC to SMP

Q-030440 Series

Part	Color	2nd Connector	1st Contact Gender	Overall Impedance	Features	2nd Contact Gender	Style	Length	Length	Length	1st Connector	Frequency - Max [Max]	2nd Connector Mounting Type	Cable Type	1st Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-030440005108i	Copper	SMP Plug	Female	50 Ohms	Shielded	Male	BNC to SMP	2.7 m	9 ft	108 in	BNC Jack	4 GHz	Free Hanging (In-Line)	RG-316	Free Hanging (In-Line)
Amphenol Custom Cable Q-030440005009i	Copper	SMP Plug	Female	50 Ohms	Shielded	Male	BNC to SMP	228.6 mm		9 "	BNC Jack	4 GHz	Free Hanging (In-Line)	RG-316	Free Hanging (In-Line)
Amphenol Custom Cable Q-030440005002M	Copper	SMP Plug	Female	50 Ohms	Shielded	Male	BNC to SMP	2 m	6.6 ft	78.7 in	BNC Jack	4 GHz	Free Hanging (In-Line)	RG-316	Free Hanging (In-Line)
Amphenol Custom Cable Q-030440005012i	Copper	SMP Plug	Female	50 Ohms	Shielded	Male	BNC to SMP	304.8 mm		12 "	BNC Jack	4 GHz	Free Hanging (In-Line)	RG-316	Free Hanging (In-Line)
Amphenol Custom Cable Q-030440005.75M	Copper	SMP Plug	Female	50 Ohms	Shielded	Male	BNC to SMP	750 mm		29.53 "	BNC Jack	4 GHz	Free Hanging (In-Line)	RG-316	Free Hanging (In-Line)
Amphenol Custom Cable Q-030440005006i	Copper	SMP Plug	Female	50 Ohms	Shielded	Male	BNC to SMP	152.4 mm		6 in	BNC Jack	4 GHz	Free Hanging (In-Line)	RG-316	Free Hanging (In-Line)
Amphenol Custom Cable Q-030440005060i	Copper	SMP Plug	Female	50 Ohms	Shielded	Male	BNC to SMP	1.5 m	5 ft	5 '	BNC Jack	4 GHz	Free Hanging (In-Line)	RG-316	Free Hanging (In-Line)
Amphenol Custom Cable Q-0304400031.5M	Black	SMP Plug	Female	50 Ohms	Shielded	Male	BNC to SMP	1.5 m	4.9 ft	59.1 in	BNC Jack	4 GHz	Free Hanging (In-Line)	RG-174	Free Hanging (In-Line)
Amphenol Custom Cable Q-030440003.75M	Black	SMP Plug	Female	50 Ohms	Shielded	Male	BNC to SMP	750 mm		29.53 "	BNC Jack	4 GHz	Free Hanging (In-Line)	RG-174	Free Hanging (In-Line)
Amphenol Custom Cable Q-030440005018i	Copper	SMP Plug	Female	50 Ohms	Shielded	Male	BNC to SMP				BNC Jack	4 GHz	Free Hanging (In-Line)	RG-316	Free Hanging (In-Line)	457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 104.84
		25	$ 102.80
		50	$ 100.76
		100	$ 98.71
		250	$ 96.67

Description

General part information

Q-030440 Series

Cable Assembly Coaxial BNC to SMP RG-316 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
