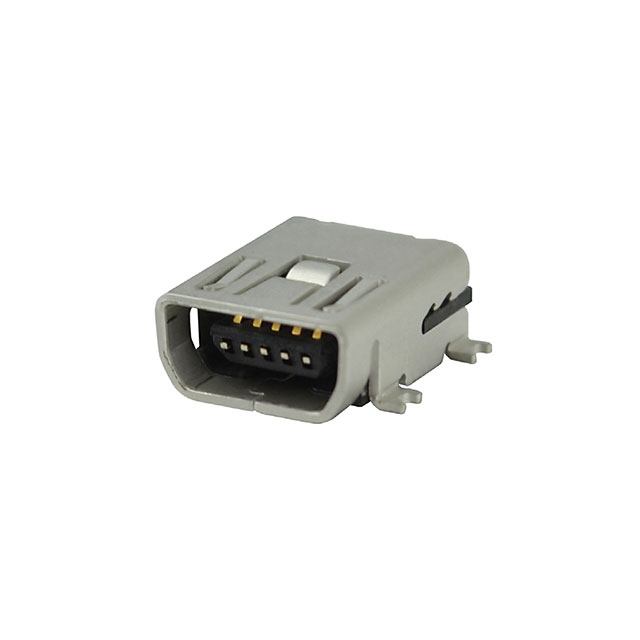

UJ2-MABH-2-SMT-TR
ActiveCUI Devices
CONN RCPT USB2.0 MINI AB SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UJ2-MABH-2-SMT-TR
ActiveCUI Devices
CONN RCPT USB2.0 MINI AB SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UJ2-MABH-2-SMT-TR |
|---|---|
| Contact Finish | Gold |
| Features | Board Guide, Solder Retention |
| Features | 6 µ" |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 5000 |
| Mounting Feature | Horizontal |
| Mounting Type | Surface Mount, Right Angle |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Shell/Shielding Material | Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.68 | |
| 10 | $ 0.59 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 0.68 | ||
| 10 | $ 0.59 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.45 | |||
| Tape & Reel (TR) | 750 | $ 0.32 | ||
| 1500 | $ 0.29 | |||
| 2250 | $ 0.28 | |||
| 3750 | $ 0.27 | |||
| 5250 | $ 0.26 | |||
Description
General part information
UJ2-MABH Series
USB - mini AB USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
