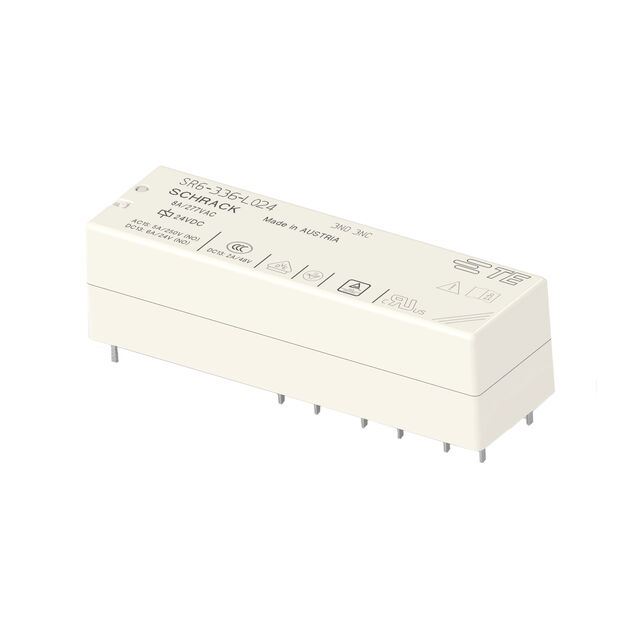

2-1558736-8
ActiveTE Connectivity Potter & Brumfield Relays
SR6-336-L024
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1558736-8
ActiveTE Connectivity Potter & Brumfield Relays
SR6-336-L024
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1558736-8 |
|---|---|
| Approval Agency | cURus, TUV, VDE |
| Coil Current | 29.2 mA |
| Coil Insulation | Class F |
| Coil Resistance | 822 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 8 A |
| Load - Max Switching | 3200 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.36 | |
| 10 | $ 25.04 | |||
| 100 | $ 21.09 | |||
Description
General part information
SR6-336 Series
General Purpose Relay 6PST-3NO/3NC (3 Form A, 3 Form B) 24VDC Coil Through Hole
