DS3232MEVKIT#

Active

Analog Devices Inc./Maxim Integrated

BOARD EVAL RTC DS3232M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTips for Writing Bulletproof Real-Time Clock Control Code

DS3232MEVKIT#

Active

Analog Devices Inc./Maxim Integrated

BOARD EVAL RTC DS3232M

Deep-Dive with AI

DocumentsTips for Writing Bulletproof Real-Time Clock Control Code

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DS3232MEVKIT#

Contents	Board(s)
Supplied Contents	Board(s)
Type	Timing
Utilized IC / Part	DS3232M

DS3232 Series

Part	Utilized IC / Part	Supplied Contents	Type	Contents	Interface	Memory Size	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Time Format	Current - Timekeeping (Max) [Max]	Current - Timekeeping (Max) [Min]	Voltage - Supply, Battery [Min]	Voltage - Supply, Battery [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Package / Case [x]	Current - Timekeeping (Max)	Qualification	Grade
Analog Devices Inc./Maxim Integrated DS3232MEVKIT#	DS3232M	Board(s)	Timing	Board(s)
Analog Devices Inc./Maxim Integrated DS3232SN#			Clock/Calendar		2-Wire Serial I2C	236 B	20-SOIC	20-SOIC	0.295 in	7.5 mm	2.3 V	5.5 V	HH:MM:SS (12/24 hr)	160 µA	120 µA	2.3 V	5.5 V	Surface Mount	85 °C	-40 °C	Alarm Leap Year Square Wave Output SRAM TCXO/Crystal
Analog Devices Inc./Maxim Integrated DS3232MZ+			Clock/Calendar		2-Wire Serial I2C	236 B	8-SOIC	8-SOIC	3.9 mm		2.3 V	4.5 V	HH:MM:SS (12/24 hr)			2.3 V	4.5 V	Surface Mount	85 °C	-40 °C	Alarm Leap Year Square Wave Output SRAM	0.154 in	175 µA
Analog Devices Inc./Maxim Integrated DS3232S#			Clock/Calendar		2-Wire Serial I2C	236 B	20-SOIC	20-SOIC	0.295 in	7.5 mm	2.3 V	5.5 V	HH:MM:SS (12/24 hr)	160 µA	120 µA	2.3 V	5.5 V	Surface Mount	70 °C	0 °C	Alarm Leap Year Square Wave Output SRAM TCXO/Crystal
Analog Devices Inc./Maxim Integrated DS3232MZ/V+			Clock/Calendar		2-Wire Serial I2C	236 B	8-SOIC	8-SOIC	3.9 mm		2.3 V	4.5 V	HH:MM:SS (12/24 hr)			2.3 V	4.5 V	Surface Mount	85 °C	-40 °C	Alarm Leap Year Square Wave Output SRAM	0.154 in	175 µA	AEC-Q100	Automotive
Analog Devices Inc./Maxim Integrated DS3232MZ+TRL			Clock/Calendar		2-Wire Serial I2C	236 B	8-SOIC	8-SOIC	3.9 mm		2.3 V	4.5 V	HH:MM:SS (12/24 hr)			2.3 V	4.5 V	Surface Mount	85 °C	-40 °C	Alarm Leap Year Square Wave Output SRAM	0.154 in	175 µA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 130.57

Description

General part information

DS3232 Series

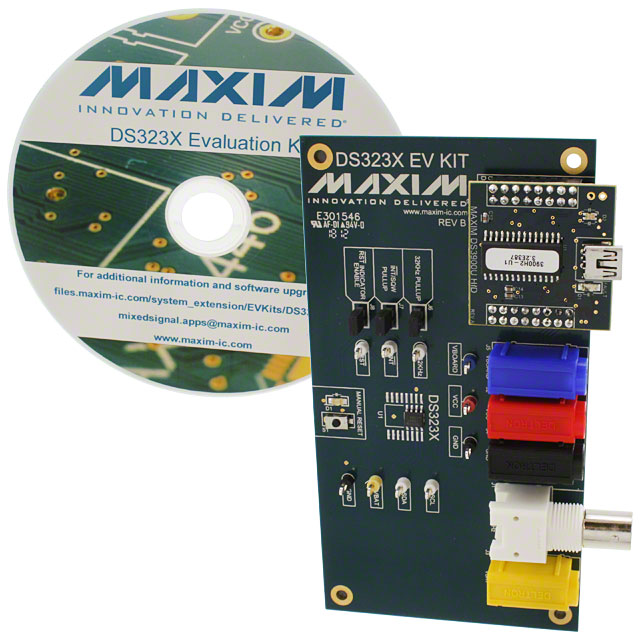

DS3232M Real Time Clock (RTC) Timing Evaluation Board
