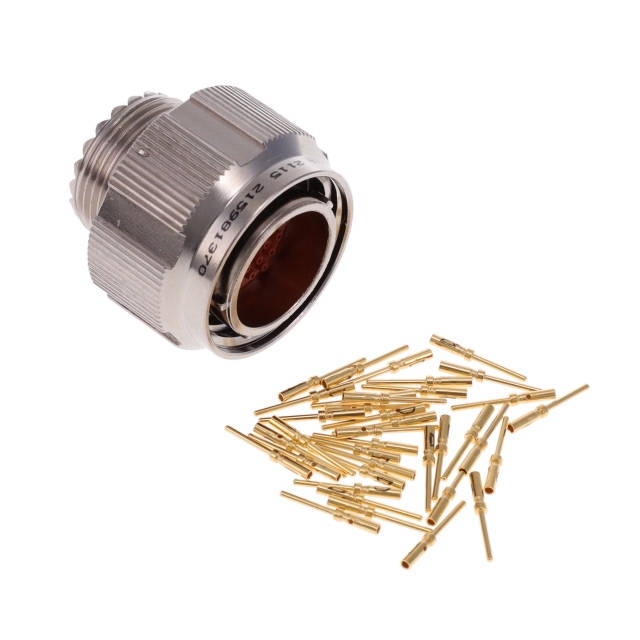

2M801-008-16M13-37PA

Active

Amphenol Aerospace Operations

2M801 37C 37#23 PIN PLUG THRD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2M801-008-16M13-37PA

Active

Amphenol Aerospace Operations

2M801 37C 37#23 PIN PLUG THRD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2M801-008-16M13-37PA

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Coupling Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	37
Shell Size - Insert [Min]	13
Shielding	Shielded
Termination	Crimp

2M801-008 Series

Part	Insert Material	Shell Material	Mounting Type	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Finish	Contact Finish - Mating	Connector Type	Contact Material	Features	Termination	Ingress Protection	Color	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Current Rating (Amps)	Primary Material	Shell Size - Insert
Amphenol Aerospace Operations 2M801-008-16M13-37PA	Polyphenylene Sulfide (PPS)	Aluminum Alloy	Free Hanging (In-Line)	Shielded	1.27 µm	50 µin	37	13	37	Electroless Nickel	Gold	Male Pins Plug	Copper Alloy	Coupling Nut	Crimp	IP67 - Dust Tight Waterproof	Silver	-65 ░C	150 °C	A	5 A	Metal
Amphenol Aerospace Operations 2M801-008-16ZNU8-2PB	Polyphenylene Sulfide (PPS)	Aluminum Alloy	Free Hanging (In-Line)	Shielded	1.27 µm	50 µin	2			Black Zinc Nickel	Gold	Male Pins Plug	Copper Alloy	Coupling Nut	Crimp	IP67 - Dust Tight Waterproof	Black	-65 ░C	150 °C	B	13 A	Metal	8-2
Amphenol Aerospace Operations 2M801-008-26M8-13SA	Polyphenylene Sulfide (PPS)	Aluminum Alloy	Free Hanging (In-Line)	Shielded	1.27 µm	50 µin	13	8	13	Electroless Nickel	Gold	Female Sockets Plug	Copper Alloy	Coupling Nut Self Locking	Crimp	IP67 - Dust Tight Waterproof	Silver	-65 ░C	150 °C	A	5 A	Metal
Amphenol Aerospace Operations 2M801-008-16ZNU13-7PB	Polyphenylene Sulfide (PPS)	Aluminum Alloy	Free Hanging (In-Line)	Shielded	1.27 µm	50 µin	7			Black Zinc Nickel	Gold	Male Pins Plug	Copper Alloy	Coupling Nut	Crimp	IP67 - Dust Tight Waterproof	Black	-65 ░C	150 °C	B	13 A	Metal	13-7
Amphenol Aerospace Operations 2M801-008-26NF9-210SA	Polyphenylene Sulfide (PPS)	Aluminum Alloy	Free Hanging (In-Line)	Shielded	1.27 µm	50 µin	10	9	210	Olive Drab Cadmium	Gold	Female Sockets Plug	Copper Alloy	Coupling Nut Self Locking	Crimp	IP67 - Dust Tight Waterproof	Olive Drab	-65 ░C	150 °C	A	7.5 A	Metal
Amphenol Aerospace Operations 2M801-008-16M13-37PB	Polyphenylene Sulfide (PPS)	Aluminum Alloy	Free Hanging (In-Line)	Shielded	1.27 µm	50 µin	37	13	37	Electroless Nickel	Gold	Male Pins Plug	Copper Alloy	Coupling Nut	Crimp	IP67 - Dust Tight Waterproof	Silver	-65 ░C	150 °C	B	5 A	Metal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 329.92
		10	$ 259.23
		25	$ 236.95

Description

General part information

2M801-008 Series

37 Position Circular Connector Plug, Male Pins Crimp
