C6356A.38.10

Active

Prysmian Group

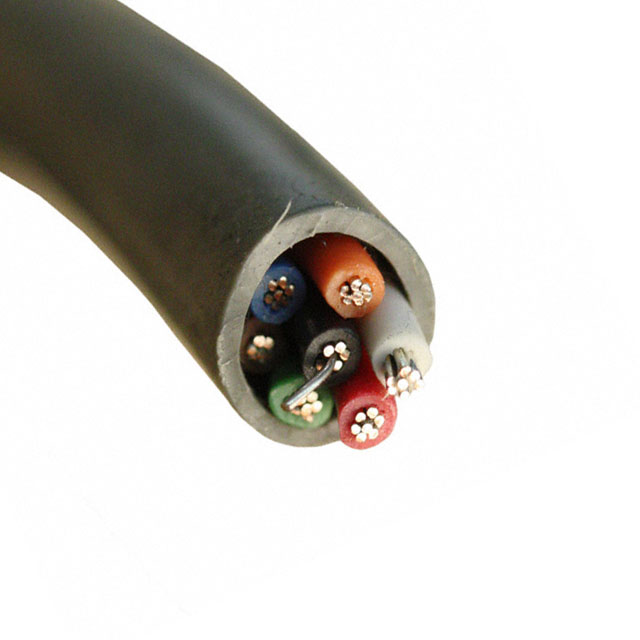

CABLE 7COND 20AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 7COND 20AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C6356A.38.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	6.99 mm
Jacket (Insulation) Diameter [diameter]	0.275 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	7
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Wire Gauge	Voltage	Usage	Jacket (Insulation) Material	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Conductor Material	Length [x]	Length [x]	Jacket Color	Length	Length
Prysmian Group C6356A.38.10	20 AWG	300 V	Communication Control	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	6.99 mm	0.275 in	Multi-Conductor	-20 C	80 C	28	7	7	Copper Tinned	500 '	152.4 m	Gray
Prysmian Group C6356A.41.10	20 AWG	300 V	Communication Control	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	6.99 mm	0.275 in	Multi-Conductor	-20 C	80 C	28	7	7	Copper Tinned	50 ft 100 ft	30.5 m	Gray	15.24 m 304.8 m	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Conductor Multi-Conductor Cable Gray 20 AWG 500.0' (152.4m)
