C0780A.41.10
ActivePrysmian Group

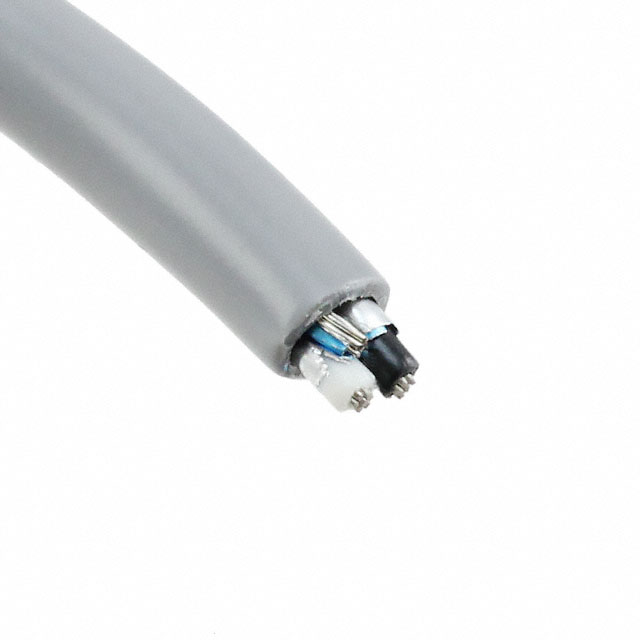

CABLE 2COND 20AWG GRAY SHLD 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C0780A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 28 |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter | 0.207 in |
| Jacket (Insulation) Diameter | 5.26 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 30.5 m, 152.4 m |
| Length [x] | 100 ft, 500 ' |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | ASTM B-33 |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Computer |
| Voltage | 300 V |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 84.00 | |
| 1 | $ 394.26 | |||
| 5 | $ 322.57 | |||
| 5 | $ 68.72 | |||
| 10 | $ 250.89 | |||
| 10 | $ 53.45 | |||
| Spool | 1000 | $ 0.43 | ||
| 2000 | $ 0.41 | |||
| 3000 | $ 0.40 | |||
| 5000 | $ 0.38 | |||
| 7000 | $ 0.37 | |||
| 10000 | $ 0.36 | |||
| 25000 | $ 0.34 | |||
Description
General part information
C0780 Series
2 Conductor Multi-Conductor Cable Gray 20 AWG Foil 100.0' (30.5m)
Documents
Technical documentation and resources
No documents available
