EV3398E-F-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

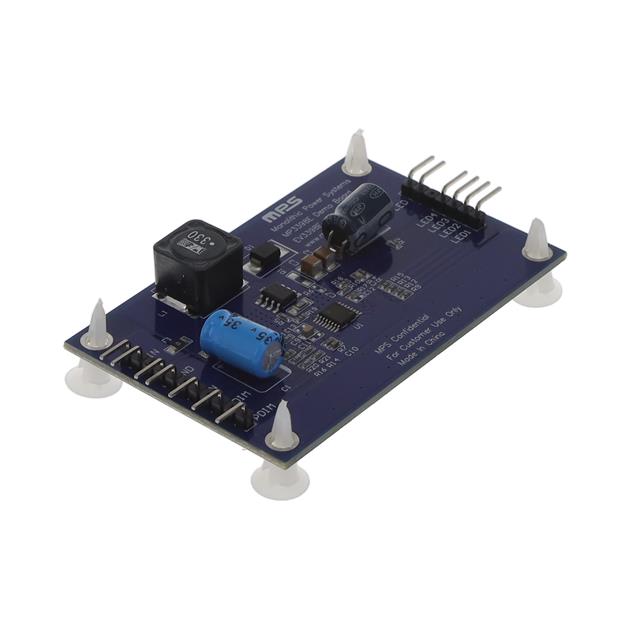

EVAL BOARD FOR MP3398E

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EV3398E-F-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MP3398E

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EV3398E-F-00A

Current - Output / Channel	120 mA
Features	Dimmable
Outputs and Type	4
Outputs and Type	Non-Isolated Outputs
Supplied Contents	Board(s)
Utilized IC / Part	MP3398E
Voltage - Input [Max]	33 V
Voltage - Input [Min]	13 V

MP3398 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Topology	Supplier Device Package	Package / Case [custom]	Package / Case	Package / Case [custom]	Applications	Mounting Type	Voltage - Supply (Max) [Max]	Dimming	Frequency	Number of Outputs	Current - Output / Channel	Voltage - Supply (Min) [Min]	Outputs and Type	Outputs and Type	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Features	Package / Case [x]	Package / Case [y]
MONOLITHIC POWER SYSTEMS (MPS) MP3398AGF-Z	-40 °C	125 ¯C	DC DC Controller	Step-Up (Boost)	16-TSSOP-EP	0.173 "	16-TSSOP Exposed Pad	4.4 mm	Backlight	Surface Mount	28 V	Analog PWM	540 kHz	4	350 mA	5 V
MONOLITHIC POWER SYSTEMS (MPS) EV3398E-F-00A															120 mA		4	Non-Isolated Outputs	Board(s)	13 V	33 V	MP3398E	Dimmable
MONOLITHIC POWER SYSTEMS (MPS) MP3398AGS	-40 °C	125 ¯C	DC DC Controller	Step-Up (Boost)	16-SOIC		16-SOIC		Backlight	Surface Mount	28 V	Analog PWM	540 kHz	4	350 mA	5 V								0.154 in	3.9 mm
MONOLITHIC POWER SYSTEMS (MPS) MP3398BGF	-40 °C	125 ¯C	DC DC Controller	Step-Up (Boost)	16-TSSOP-EP	0.173 "	16-TSSOP Exposed Pad	4.4 mm	Backlight	Surface Mount	28 V	Analog PWM	540 kHz	4	350 mA	5 V
MONOLITHIC POWER SYSTEMS (MPS) MP3398LGS-Z	-40 °C	125 ¯C	DC DC Controller	Step-Up (Boost)	16-SOIC		16-SOIC		Backlight	Surface Mount	28 V	Analog PWM	540 kHz	4	350 mA	4.5 V								0.154 in	3.9 mm
MONOLITHIC POWER SYSTEMS (MPS) MP3398LGS	-40 °C	125 ¯C	DC DC Controller	Step-Up (Boost)	16-SOIC		16-SOIC		Backlight	Surface Mount	28 V	Analog PWM	540 kHz	4	350 mA	4.5 V								0.154 in	3.9 mm
MONOLITHIC POWER SYSTEMS (MPS) MP3398AGS-Z	-40 °C	125 ¯C	DC DC Controller	Step-Up (Boost)	16-SOIC		16-SOIC		Backlight	Surface Mount	28 V	Analog PWM	540 kHz	4	350 mA	5 V								0.154 in	3.9 mm
MONOLITHIC POWER SYSTEMS (MPS) MP3398EGF-Z					16-TSSOP-EP	0.173 "	16-TSSOP Exposed Pad	4.4 mm		Surface Mount
MONOLITHIC POWER SYSTEMS (MPS) EV3398E-U-00A															120 mA		4	Non-Isolated Outputs	Board(s)	13 V	33 V	MP3398E	Dimmable
MONOLITHIC POWER SYSTEMS (MPS) MP3398BGF-Z	-40 °C	125 ¯C	DC DC Controller	Step-Up (Boost)	16-TSSOP-EP	0.173 "	16-TSSOP Exposed Pad	4.4 mm	Backlight	Surface Mount	28 V	Analog PWM	540 kHz	4	350 mA	5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 100.00

Description

General part information

MP3398 Series

MP3398E - 4 Non-Isolated Outputs pval(5) LED Driver Evaluation Board
