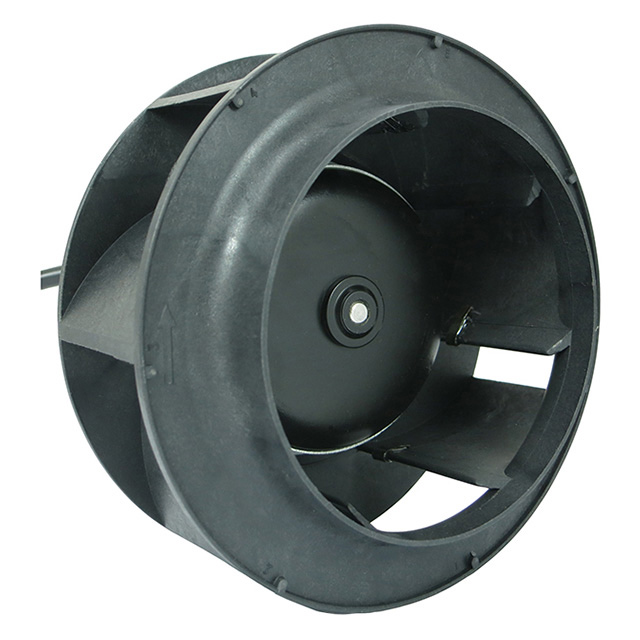

ODB13391-24HB10A - ODB13391

ODB13391-24HB10A

Active
Orion Fans

FAN IMP MTRZD 133.5X91MM 24VDC

Deep-Dive with AI

Search across all available documentation for this part.

ODB13391-24HB10A - ODB13391

ODB13391-24HB10A

Active
Orion Fans

FAN IMP MTRZD 133.5X91MM 24VDC

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationODB13391-24HB10A
Air Flow257 CFM
Air Flow7.2 m³/min
Approval AgencyTUV, CE, cURus, UR
Bearing TypeBall
Current Rating (Amps)2.65 A
Fan TypeMotorized Impellers
FeaturesSpeed Sensor (Tach), PWM Control
Lifetime @ Temp.40000 Hrs
Material - BladeThermoplastic
Material - FrameAluminum
Noise68 dB
Operating Temperature [Max]65 °C
Operating Temperature [Max]65 °C
Operating Temperature [Min]-10 °C
Operating Temperature [Min]-10 °C
Power (Watts)63.6 W
RPM4600 RPM
Size / Dimension [diameter]133.5 mm
Static Pressure473.3 Pa
Static Pressure1.9 in H2O
Termination4 Wire Leads
Voltage - Rated24 VDC
Voltage Range [Max]28 VDC
Voltage Range [Min]16 VDC
Weight700 g
Weight1.543 lb
Width [y]91 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 12$ 98.27

Description

General part information

ODB13391 Series

Fan Motorized Impellers 24VDC Round - 133.5mm Dia Ball 257.0 CFM (7.20m³/min) 4 Wire Leads

Documents

Technical documentation and resources

No documents available
