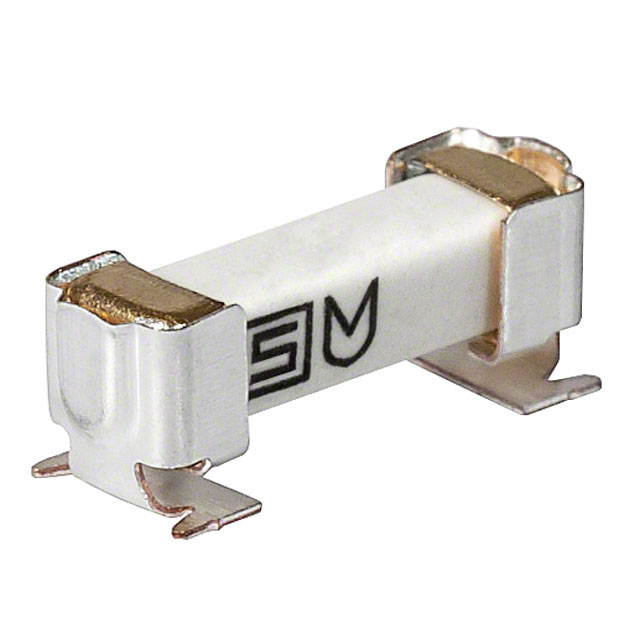

3404.2467.11

Active

SCHURTER Inc.

FUSE BRD MNT 1.25A 250VAC 125VDC

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE BRD MNT 1.25A 250VAC 125VDC

Technical Specifications

Parameters and characteristics for this part

Specification	3404.2467.11

Approval Agency	cURus, VDE
Breaking Capacity @ Rated Voltage	200 A, 100 A
Current Rating (Amps)	1.25 A
Fuse Type	Board Mount
Melting I˛t	1
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	2-SMD, Square End Block with Clip
Response Time	Fast Blow
Size / Dimension [x]	0.445 "
Size / Dimension [x]	11.3 mm
Size / Dimension [y]	4.2 mm
Size / Dimension [y]	0.165 "
Size / Dimension [z]	0.157 "
Size / Dimension [z]	4 mm
Voltage Rating - AC	250 V
Voltage Rating - DC	125 VDC

Part	Fuse Type	Mounting Type	Melting I˛t	Package / Case	Response Time	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage Rating - AC	Voltage Rating - DC	Approval Agency	Breaking Capacity @ Rated Voltage	Melting I²t
SCHURTER Inc. 3404.2467.11	Board Mount	Surface Mount	1	2-SMD Square End Block with Clip	Fast Blow	1.25 A	85 °C	-40 °C	0.445 "	11.3 mm	4.2 mm	0.157 "	4 mm	0.165 "	250 V	125 VDC	cURus VDE	100 A 200 A
SCHURTER Inc. 3404.2467.22	Board Mount	Surface Mount		2-SMD Square End Block with Clip	Fast Blow	1.25 A	85 °C	-40 °C	0.445 "	11.3 mm	4.2 mm	0.157 "	4 mm	0.165 "	250 V	125 VDC	cURus VDE	100 A 200 A	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	100	$ 0.96

General part information

1.25 A 250 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block with Clip
