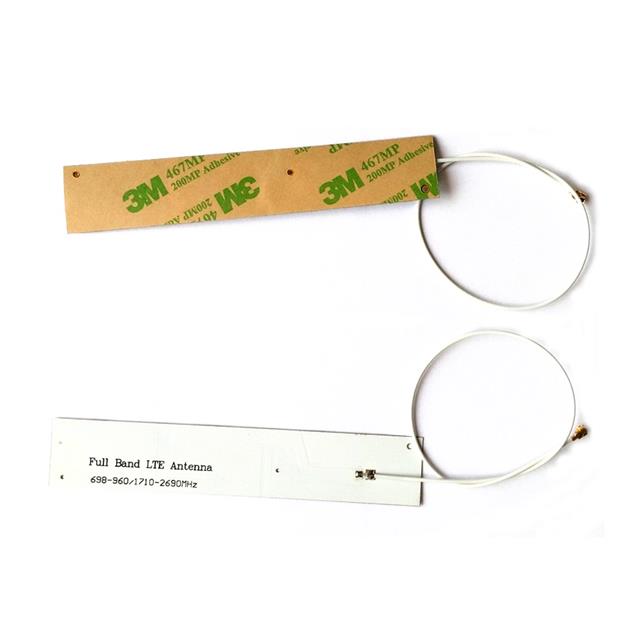

RPCF-MA3-MC5-110020-O-X-001
ActiveRaltron Electronics
2G/3G/4G EMBEDDED SMALL FPC ANTE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RPCF-MA3-MC5-110020-O-X-001
ActiveRaltron Electronics
2G/3G/4G EMBEDDED SMALL FPC ANTE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RPCF-MA3-MC5-110020-O-X-001 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | 3G, 4G, Wi-Fi, Cellular, 2G |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 829 MHz, 2.205 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.69 GHz, 960 MHz |
| Frequency Range [Min] | 1.71 GHz, 698 MHz |
| Gain | 3 dBi |
| Height (Max) [Max] | 0.2 mm |
| Height (Max) [Max] | 0.008 in |
| Ingress Protection | IP60 |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| RF Family/Standard | Cellular, WiFi |
| Termination | IPEX |
| VSWR | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.00 | |
| 50 | $ 6.89 | |||
| 100 | $ 5.99 | |||
| 1000 | $ 4.54 | |||
Description
General part information
RPCF-MA3 Series
829MHz, 2.205GHz 2G, 3G, 4G, Cellular, Wi-Fi PCB Trace RF Antenna 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz 3dBi IPEX Adhesive
Documents
Technical documentation and resources
