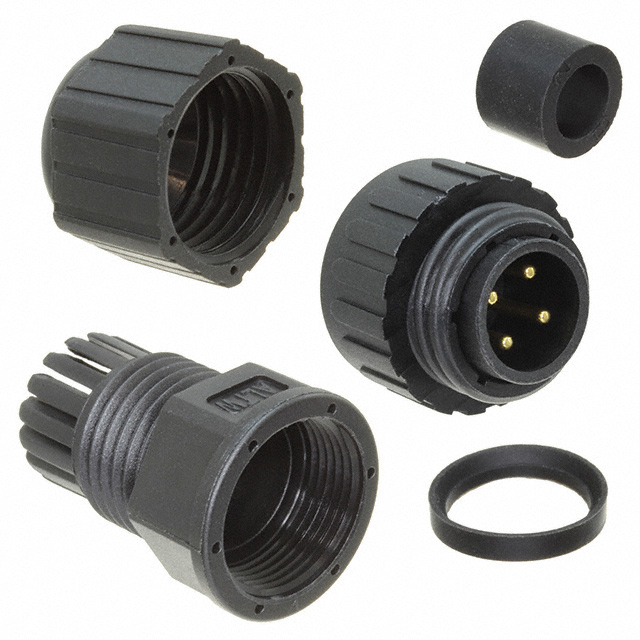

PWF-04BMMA-SL7001
ActiveAmphenol LTW
POWER 12A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PWF-04BMMA-SL7001
ActiveAmphenol LTW
POWER 12A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PWF-04BMMA-SL7001 |
|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [custom] | 10.8 mm |
| Cable Opening [Max] [custom] | 0.425 in |
| Cable Opening [Min] [custom] | 0.217 in |
| Cable Opening [Min] [custom] | 5.5 mm |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 12 A |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.19 | |
| 10 | $ 10.13 | |||
| 25 | $ 9.16 | |||
| 50 | $ 8.50 | |||
| 100 | $ 7.90 | |||
| 250 | $ 7.19 | |||
| 500 | $ 6.72 | |||
| 1000 | $ 6.29 | |||
Description
General part information
PWF-04BMMA Series
4 (Power) Position Circular Connector Receptacle, Male Pins Solder Cup
