TG-A3500-100-100-2.5

Active

t-Global Technology

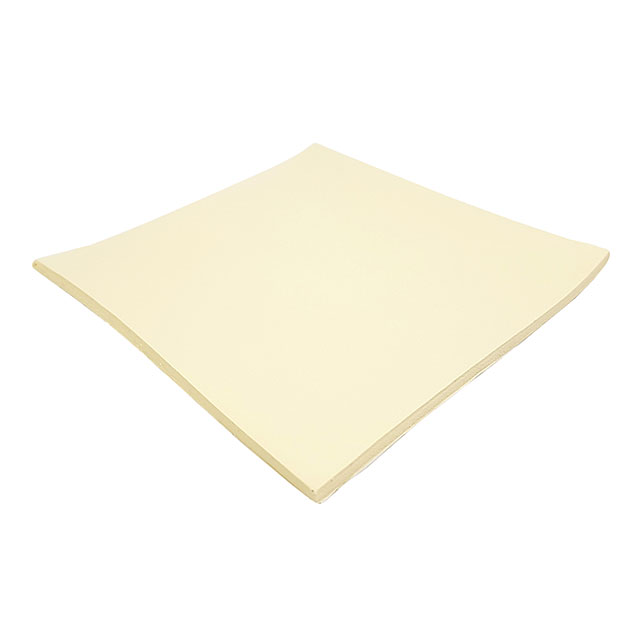

THERM PAD 100MMX100MM YLW

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 100MMX100MM YLW

Technical Specifications

Parameters and characteristics for this part

...

Part	Adhesive	Shape	Usage	Color	Outline [x]	Outline [y]	Shelf Life	Material	Thermal Conductivity	Thickness	Thickness	Backing, Carrier
t-Global Technology TG-A3500-160-160-2.5	Tacky - Both Sides	Square	Multi	Yellow	160 mm	160 mm	24 Months	Silicone	3.5 W/m-K	2.5 mm	0.0984 in
t-Global Technology TG-A3500-40-40-3.0	Tacky - Both Sides	Square	Multi	Yellow	40 mm	40 mm	24 Months	Silicone	3.5 W/m-K	3 mm	0.118 in
t-Global Technology TG-A3500-160-160-1.0	Tacky - Both Sides	Square	Multi	Yellow	160 mm	160 mm	24 Months	Silicone	3.5 W/m-K	1 mm	0.0394 in
t-Global Technology TG-A3500-30-30-1.0	Tacky - Both Sides	Square	Multi	Yellow	30 mm	30 mm	24 Months	Silicone	3.5 W/m-K	1 mm	0.0394 in
t-Global Technology TG-A3500F-160-160-4.0	Tacky - One Side	Square	Multi	Yellow	160 mm	160 mm	24 Months	Silicone	3 W/m-K	4 mm	0.157 in	Fiberglass
t-Global Technology TG-A3500-20-20-0.5	Tacky - Both Sides	Square	Multi	Yellow	20 mm	20 mm	24 Months	Silicone	3.5 W/m-K	0.5 mm	0.0197 in
t-Global Technology TG-A3500-19.50-12.70-3.0	Tacky - Both Sides	Rectangular	Multi	Yellow	19.5 mm	12.7 mm	24 Months	Silicone	3.5 W/m-K	3 mm	0.118 in
t-Global Technology TG-A3500-160-160-0.8	Tacky - Both Sides	Square	Multi	Yellow	160 mm	160 mm	24 Months	Silicone	3.5 W/m-K	0.787 mm	0.031 in
t-Global Technology TG-A3500-100-100-2.5	Tacky - Both Sides	Square	Multi	Yellow	100 mm	100 mm	24 Months	Silicone	3.5 W/m-K	2.5 mm	0.0984 in
t-Global Technology TG-A3500-15-15-1.0	Tacky - Both Sides	Square	Multi	Yellow	15 mm	15 mm	24 Months	Silicone	3.5 W/m-K	1 mm	0.0394 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
