AWHW40G-0102-T-R

Obsolete

Assmann WSW Components

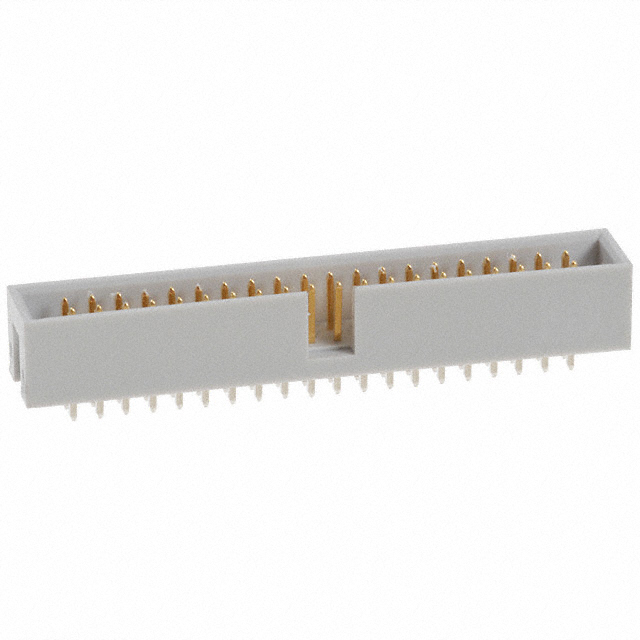

CONN HEADER VERT 40POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AWHW40G-0102-T-R

Obsolete

Assmann WSW Components

CONN HEADER VERT 40POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AWHW40G-0102-T-R

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating [x]	0.224 in
Contact Length - Mating [x]	5.7 mm
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Gray
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

AWHW2 40 Series

Part	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating [x]	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Features	Style	Contact Finish - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Positions Loaded	Contact Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Type	Fastening Type	Number of Rows	Contact Finish - Post	Mounting Type	Contact Shape	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height [custom]	Insulation Height [custom]	Row Spacing - Mating	Row Spacing - Mating
Assmann WSW Components AWHW40G-0102-T-R	0.13 in	3.3 mm	Gray	0.224 in	5.7 mm	Solder	2.54 mm	0.1 in	UL94 V-0	9 mm	0.354 in	30 Áin	0.76 Ám	Polybutylene Terephthalate (PBT) Glass Filled	Keying Slot	Board to Cable/Wire	Gold	Shrouded - 4 Wall	0.1 in	2.54 mm	40	All	Brass	Header	-40 °C	105 ░C	3 A	Male Pin	Push-Pull	2	Tin	Through Hole	Square
Assmann WSW Components AWHW40A-0202-T-R	0.124 "	3.15 mm	Gray	0.224 in	5.7 mm	Solder	2.54 mm	0.1 in	UL94 V-0	8.94 mm	0.352 in			Polybutylene Terephthalate (PBT) Glass Filled	Keying Slot	Board to Cable/Wire	Gold	Shrouded - 4 Wall	0.1 in	2.54 mm	40	All	Brass	Header	-40 °C	105 ░C	3 A	Male Pin	Push-Pull	2	Tin	Through Hole Right Angle	Square	Flash
Assmann WSW Components AWHW2 40A-0202		2.79 mm	Black			Solder			UL94 V-0					Polyamide (PA9T) Nylon 9T Glass Filled	Keying Slot	Board to Cable/Wire	Gold	Shrouded - 4 Wall			40	All	Brass	Header	-40 °C	105 ░C	1.5 A	Male Pin	Push-Pull	2		Through Hole Right Angle	Square	Flash	4 mm	0.157 in	0.11 in	0.079 in	2 mm	5.51 mm	0.217 in	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AWHW2 40 Series

Connector Header Through Hole 40 position 0.100" (2.54mm)
