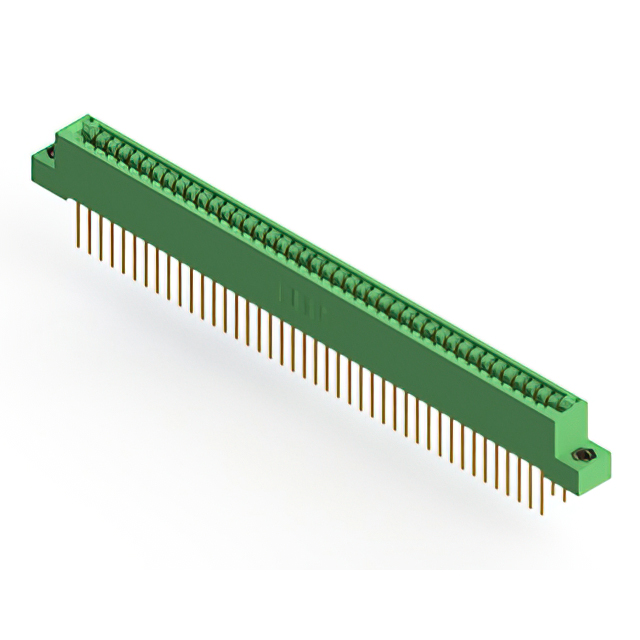

846-084-522-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 84POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-084-522-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 84POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-084-522-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 84 |
| Number of Positions/Bay/Row [custom] | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
846-084 Series
...
| Part | Contact Type | Gender | Mounting Type | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Card Type | Color | Contact Finish | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Contact Material | Termination | Flange Feature | Flange Feature | Number of Rows | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | Female | Through Hole | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 84 | Non Specified - Dual Edge | Green | Gold | 42 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | Solder | 3.25 mm | 0.128 in | 2 | 2 | 125 °C | -40 °C | Dual | ||||
EDAC Inc. | Cantilever | Female | Through Hole | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 84 | Non Specified - Dual Edge | Green | Gold | 42 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | Solder | 2 | 2 | 125 °C | -40 °C | Dual | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | |||
EDAC Inc. | Cantilever | Female | Through Hole Right Angle | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 84 | Non Specified - Dual Edge | Green | Gold | 42 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | Solder | 2 | 2 | 125 °C | -40 °C | Dual | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Cantilever | Female | Through Hole | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 84 | Non Specified - Dual Edge | Green | Gold | 42 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | Solder Eyelet(s) | 2 | 2 | 125 °C | -40 °C | Dual | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | |||
EDAC Inc. | Cantilever | Female | Through Hole | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 84 | Non Specified - Dual Edge | Green | Gold | 42 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | Solder | 3.25 mm | 0.128 in | 2 | 2 | 125 °C | -40 °C | Dual | Side Mount Opening Unthreaded | |||
EDAC Inc. | Cantilever | Female | Board Edge Straddle Mount | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 84 | Non Specified - Dual Edge | Green | Gold | 42 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | Solder | 2 | 2 | 125 °C | -40 °C | Dual | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Card Extender | ||
EDAC Inc. | Cantilever | Female | Board Edge Straddle Mount | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 84 | Non Specified - Dual Edge | Green | Gold | 42 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | Solder | 2 | 2 | 125 °C | -40 °C | Dual | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Card Extender | ||
EDAC Inc. | Cantilever | Female | Through Hole Right Angle | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 84 | Non Specified - Dual Edge | Green | Gold | 42 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | Solder | 2 | 2 | 125 °C | -40 °C | Dual | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | |||
EDAC Inc. | Cantilever | Female | Board Edge Straddle Mount | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 84 | Non Specified - Dual Edge | Green | Gold | 42 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | Solder | 3.25 mm | 0.128 in | 2 | 2 | 125 °C | -40 °C | Dual | Side Mount Opening Unthreaded | Card Extender | ||
EDAC Inc. | Cantilever | Female | Through Hole | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 84 | Non Specified - Dual Edge | Green | Gold | 42 | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | Copper Alloy | Solder | 2 | 2 | 125 °C | -40 °C | Dual | Flush Mount M3 Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 95.44 | |
Description
General part information
846-084 Series
84 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
