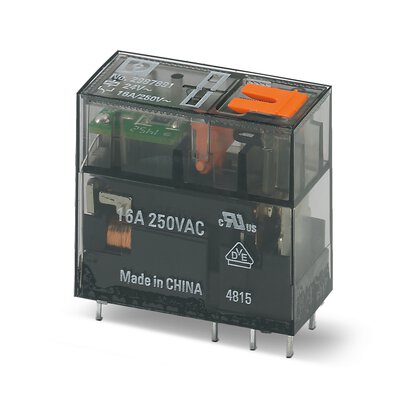

2987891
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 16A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2987891
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 16A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2987891 |
|---|---|
| Approval Agency | cULus, EAC, UR |
| Coil Current | 32 mA |
| Coil Resistance | 750 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 16 A |
| Mounting Type | Through Hole |
| Operate Time | 12 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 8 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.66 | |
| 10 | $ 8.09 | |||
| 50 | $ 7.44 | |||
| 100 | $ 6.88 | |||
| 250 | $ 6.55 | |||
| 500 | $ 6.52 | |||
Description
General part information
29878 Series
General Purpose Relay SPDT (1 Form C) 24VAC Coil Through Hole
Documents
Technical documentation and resources
