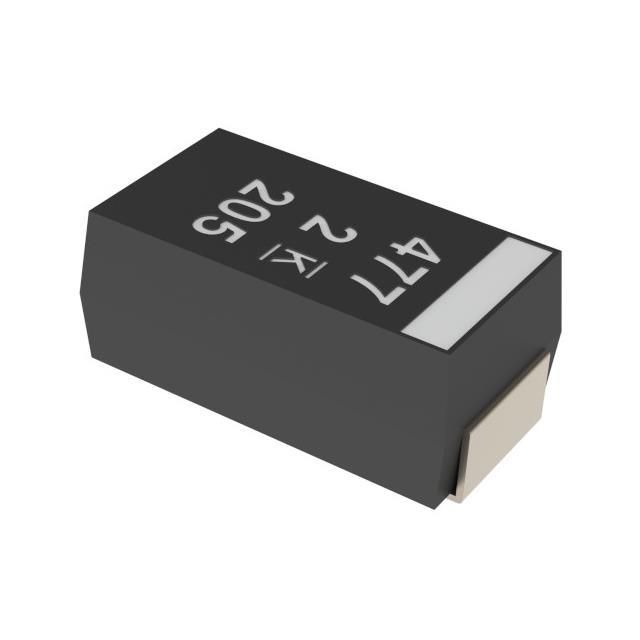

A798D477M2R5PTE009

Active

KEMET

CAP ALUM POLY 470UF 20% 2.5V SMD

Search across all available documentation for this part.

Active

KEMET

CAP ALUM POLY 470UF 20% 2.5V SMD

Technical Specifications

Parameters and characteristics for this part

Specification	A798D477M2R5PTE009

Applications	General Purpose
Capacitance	470 µF
ESR (Equivalent Series Resistance)	9 mOhms
Height - Seated (Max) [Max] [z]	0.122 "
Height - Seated (Max) [Max] [z]	3.1 mm
Lifetime @ Temp.	3000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Ripple Current @ High Frequency	5.27 A
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Polymer
Voltage - Rated	2.5 V

Part	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Tolerance	Ripple Current @ High Frequency	Mounting Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Package / Case	Package / Case
KEMET A798D477M2R5PTE009	2.5 V	0.122 "	3.1 mm	9 mOhms	3000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	470 µF	20 %	5.27 A	Surface Mount	Polymer	-55 °C	125 °C	General Purpose	7343 Metric	2917
KEMET A798D477M002PTE006	2 VDC	0.122 "	3.1 mm	6 mOhms	3000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	470 µF	20 %	6.46 A	Surface Mount	Polymer	-55 °C	125 °C	General Purpose	7343 Metric	2917
KEMET A798D477M2R5ATE006	2.5 V	0.122 "	3.1 mm	6 mOhms	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	470 µF	20 %	6.46 A	Surface Mount	Polymer	-55 °C	125 °C	General Purpose	7343 Metric	2917

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 1.29

General part information

470 µF 2.5 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 9mOhm 3000 Hrs @ 125°C
