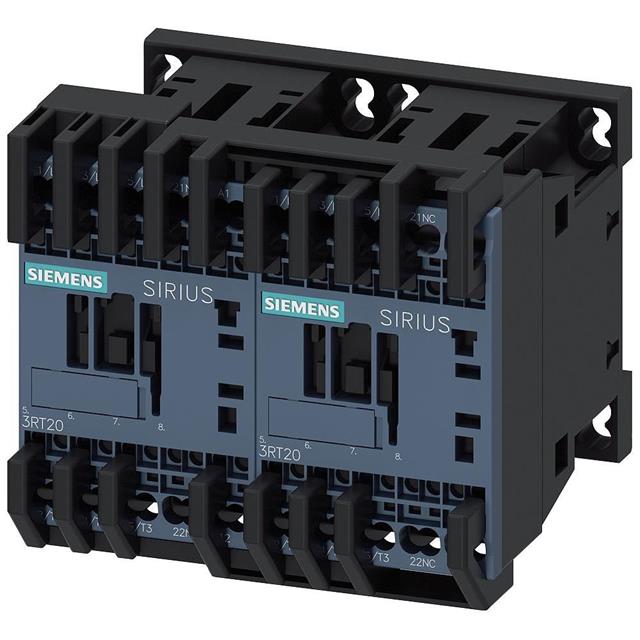

3RA23178XB302AP6

Active

Siemens

CONTACTOR REV S00 12A 240VAC SPR

Search across all available documentation for this part.

Active

Siemens

CONTACTOR REV S00 12A 240VAC SPR

Technical Specifications

Parameters and characteristics for this part

Part	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Contact Form	Switching Voltage	Coil Power	Contact Rating (Current)	Termination Style	Must Operate Voltage
Siemens 3RA23178XB301BW4	48 VDC	-25 °C	60 °C	Auxiliary Contacts	Chassis Mount DIN Rail	3PST-NO (3 Form A)	690 VAC	4 W	12 A	Screw Terminal
Siemens 3RA23178XB302BB4	24 VDC	-25 °C	60 °C	Auxiliary Contacts	Chassis Mount DIN Rail	3PST-NO (3 Form A)	690 VAC	4 W	12 A	Screw Terminal
Siemens 3RA23178XB302AP6		-25 °C	60 °C		DIN Rail				11 A	Spring Terminal
Siemens 3RA23178XB302AK6	120 VAC	-25 °C	60 °C	Auxiliary Contacts	Chassis Mount DIN Rail	3PST-NO (3 Form A)	690 VAC	37 VA	12 A	Screw Terminal	102 VAC
Siemens 3RA23178XB301AF0	110 VAC/DC	-25 °C	60 °C	Auxiliary Contacts	Chassis Mount DIN Rail	3PST-NO (3 Form A)	690 VAC	37 VA	12 A	Screw Terminal	93.5 VAC
Siemens 3RA23178XB301AP0	230 VAC	-25 °C	60 °C	Auxiliary Contacts	Chassis Mount DIN Rail	3PST-NO (3 Form A)	690 VAC	37 VA	12 A	Screw Terminal	195.5 VAC
Siemens 3RA23178XB301AH0	48 VAC/DC	-25 °C	60 °C	Auxiliary Contacts	Chassis Mount DIN Rail	3PST-NO (3 Form A)	690 VAC	37 VA	12 A	Screw Terminal	40.8 VAC
Siemens 3RA23178XB305BB4
Siemens 3RA23178XB302AP0	230 VAC	-25 °C	60 °C	Auxiliary Contacts	Chassis Mount DIN Rail	3PST-NO (3 Form A)	690 VAC	37 VA	12 A	Screw Terminal	195.5 VAC
Siemens 3RA23178XB302AB0	24 VAC	-25 °C	60 °C	Auxiliary Contacts	Chassis Mount DIN Rail	3PST-NO (3 Form A)	690 VAC	37 VA	12 A	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 235.76

General part information

CONTACTOR REV S00 12A 240VAC SPR

Technical documentation and resources

No documents available
