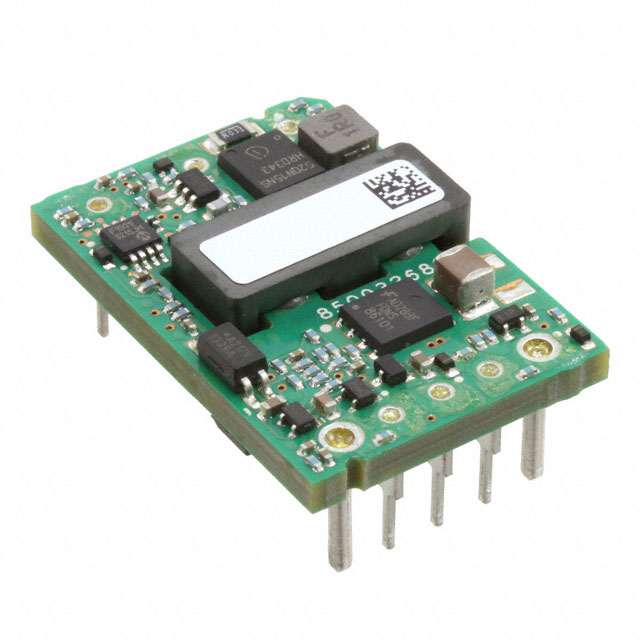

KHHD004A2S8R0841Z

Active

OmniOn Power™

DC DC CONVERTER 8V 34W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 8V 34W

Technical Specifications

Parameters and characteristics for this part

Specification	KHHD004A2S8R0841Z

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	4.2 A
Efficiency	90 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module, 1/16 Brick
Power (Watts)	34 W
Size / Dimension [x]	1.3 "
Size / Dimension [x]	33 mm
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	0.37 in
Size / Dimension [z]	9.3 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	60 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	8 V

Part	Control Features	Mounting Type	Voltage - Input (Max) [Max]	Applications	Voltage - Input (Min) [Min]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Power (Watts)	Number of Outputs	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Package / Case	Features	Voltage - Output 1
OmniOn Power™ KHHD004A2S8R0841Z	Active Low Enable	Through Hole	60 V	ITE (Commercial)	18 V	Isolated Module	1.3 "	22.9 mm	33 mm	0.37 in	0.9 "	9.3 mm	4.2 A	34 W	1	2250 VDC	-40 °C	80 C	90 %	8-DIP Module 1/16 Brick	OCP OTP OVP Remote On/Off SCP UVLO	8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	225	$ 27.19

General part information

Isolated Module DC DC Converter 1 Output 8V 4.2A 18V - 60V Input
