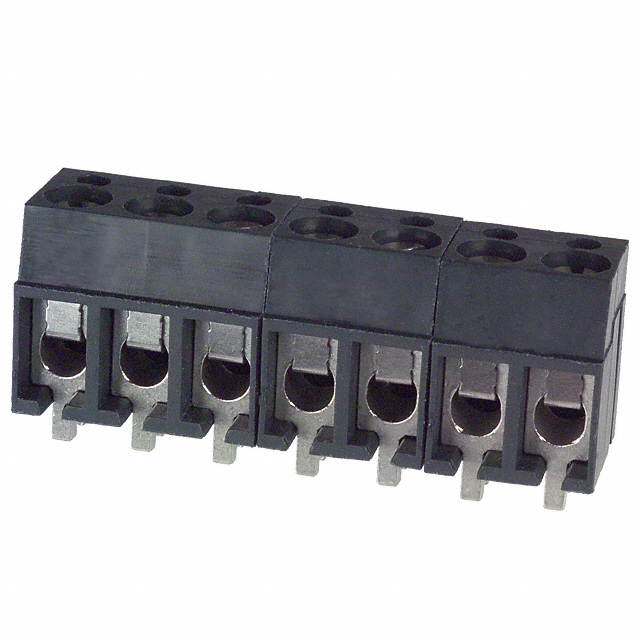

ED104/7DS

Active

On Shore Technology Inc.

TERM BLK 7POS SIDE ENTRY 5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ED104/7DS

Active

On Shore Technology Inc.

TERM BLK 7POS SIDE ENTRY 5MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ED104/7DS

Clamp Material - Plating	Stainless, Steel
Color	Gray
Contact Material - Plating [custom]	Brass
Current	15 A
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	7
Screw Thread	M3
Torque - Screw	0.8 Nm
Torque - Screw	7.1 Lb-In
Voltage	300 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Screw - Leaf Spring, Wire Guard

ED104 Series

Part	Housing Material	Screw Thread	Number of Levels	Wire Termination	Current	Color	Mounting Type	Positions Per Level	Mating Orientation	Torque - Screw	Torque - Screw	Clamp Material - Plating	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Contact Material - Plating [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage
On Shore Technology Inc. ED104/4DS	Polyamide (PA) Nylon	M3	1	Screw - Leaf Spring Wire Guard	15 A	Gray	Through Hole	4	Horizontal with Board	0.8 Nm	7.1 Lb-In	Stainless Steel	14 AWG	22 AWG	5 mm	0.197 in	Brass	-30 ░C	105 ░C	300 V
On Shore Technology Inc. ED104/7DS	Polyamide (PA) Nylon	M3	1	Screw - Leaf Spring Wire Guard	15 A	Gray	Through Hole	7	Horizontal with Board	0.8 Nm	7.1 Lb-In	Stainless Steel	14 AWG	22 AWG	5 mm	0.197 in	Brass	-30 ░C	105 ░C	300 V
On Shore Technology Inc. ED104/5DS	Polyamide (PA) Nylon	M3	1	Screw - Leaf Spring Wire Guard	15 A	Gray	Through Hole	5	Horizontal with Board	0.8 Nm	7.1 Lb-In	Stainless Steel	14 AWG	22 AWG	5 mm	0.197 in	Brass	-30 ░C	105 ░C	300 V
On Shore Technology Inc. ED104/11DS	Polyamide (PA) Nylon	M3	1	Screw - Leaf Spring Wire Guard	15 A	Gray	Through Hole	11	Horizontal with Board	0.8 Nm	7.1 Lb-In	Stainless Steel	14 AWG	22 AWG	5 mm	0.197 in	Brass	-30 ░C	105 ░C	300 V
On Shore Technology Inc. ED104/8DS	Polyamide (PA) Nylon	M3	1	Screw - Leaf Spring Wire Guard	15 A	Gray	Through Hole	8	Horizontal with Board	0.8 Nm	7.1 Lb-In	Stainless Steel	14 AWG	22 AWG	5 mm	0.197 in	Brass	-30 ░C	105 ░C	300 V
On Shore Technology Inc. ED104/9DS	Polyamide (PA) Nylon	M3	1	Screw - Leaf Spring Wire Guard	15 A	Gray	Through Hole	9	Horizontal with Board	0.8 Nm	7.1 Lb-In	Stainless Steel	14 AWG	22 AWG	5 mm	0.197 in	Brass	-30 ░C	105 ░C	300 V
On Shore Technology Inc. ED104/3DS	Polyamide (PA) Nylon	M3	1	Screw - Leaf Spring Wire Guard	15 A	Gray	Through Hole	3	Horizontal with Board	0.8 Nm	7.1 Lb-In	Stainless Steel	14 AWG	22 AWG	5 mm	0.197 in	Brass	-30 ░C	105 ░C	300 V
On Shore Technology Inc. ED104/12DS	Polyamide (PA) Nylon	M3	1	Screw - Leaf Spring Wire Guard	15 A	Gray	Through Hole	12	Horizontal with Board	0.8 Nm	7.1 Lb-In	Stainless Steel	14 AWG	22 AWG	5 mm	0.197 in	Brass	-30 ░C	105 ░C	300 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 2.55

Description

General part information

ED104 Series

7 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
