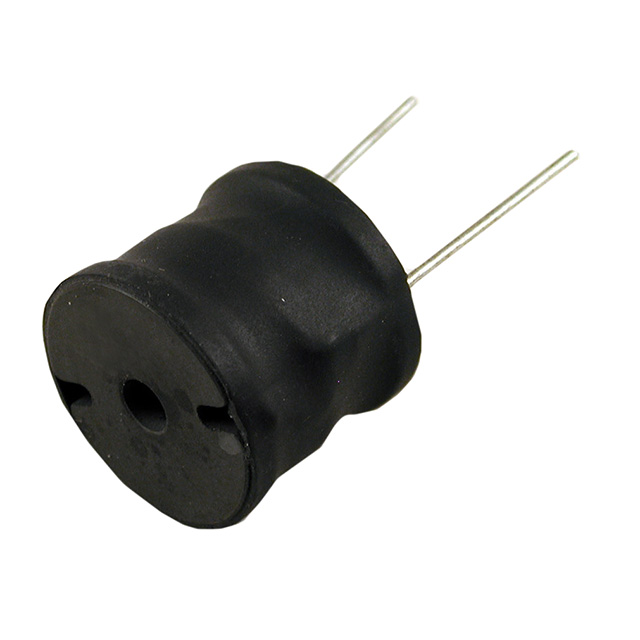

1539M15

Active

Hammond Manufacturing

FIXED IND 250UH 4.6A 83 MOHM TH

Deep-Dive with AI

Search across all available documentation for this part.

Documents1539 Series

1539M15

Active

Hammond Manufacturing

FIXED IND 250UH 4.6A 83 MOHM TH

Deep-Dive with AI

Documents1539 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1539M15

Current Rating (Amps)	4.6 A
DC Resistance (DCR) [Max]	83 mOhm
Height - Seated (Max) [Max] [z]	1.11 in
Height - Seated (Max) [Max] [z]	28.19 mm
Inductance	250 µH
Material - Core	Ferrite
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Shielding	Unshielded
Size / Dimension [diameter]	1.22 "
Size / Dimension [diameter]	30.99 mm
Tolerance	10 %
Type	Wirewound, Drum Core

1539 Series

Part	Material - Core	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	DC Resistance (DCR) [Max]	Inductance	Mounting Type	Package / Case	Shielding	Tolerance	Size / Dimension	Size / Dimension [diameter]	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	DC Resistance (DCR)
Hammond Manufacturing 1539M27	Ferrite	1.5 "	38.1 mm	Drum Core Wirewound	40 mOhm	250 µH	Through Hole	Radial Vertical Cylinder	Unshielded	10 %	38.1 mm	1.5 in
Hammond Manufacturing 1539M28	Ferrite	1.5 "	38.1 mm	Drum Core Wirewound	85 mOhm	500 µH	Through Hole	Radial Vertical Cylinder	Unshielded	10 %	38.1 mm	1.5 in	6.5 A
Hammond Manufacturing 1539M15	Ferrite			Drum Core Wirewound	83 mOhm	250 µH	Through Hole	Radial Vertical Cylinder	Unshielded	10 %		1.22 "	4.6 A	1.11 in	28.19 mm	30.99 mm
Hammond Manufacturing 1539M03	Ferrite			Drum Core Wirewound	23 mOhm	25 µH	Through Hole	Radial Vertical Cylinder	Unshielded	10 %		0.83 "	8 A	0.91 "	23.11 mm	21.08 mm
Hammond Manufacturing 1539M05	Ferrite			Drum Core Wirewound	72 mOhm	100 µH	Through Hole	Radial Vertical Cylinder	Unshielded	10 %		0.83 "	4.5 A	0.91 "	23.11 mm	21.08 mm
Hammond Manufacturing 1539M02	Ferrite			Drum Core Wirewound	8 mOhm	10 µH	Through Hole	Radial Vertical Cylinder	Unshielded	10 %		0.83 "	14 A	0.91 "	23.11 mm	21.08 mm
Hammond Manufacturing 1539M26	Ferrite	1.5 "	38.1 mm	Drum Core Wirewound		100 µH	Through Hole	Radial Vertical Cylinder	Unshielded	10 %	38.1 mm	1.5 in	14 A				18 mOhm
Hammond Manufacturing 1539M18	Ferrite			Drum Core Wirewound	690 mOhm	2.5 mH	Through Hole	Radial Vertical Cylinder	Unshielded	10 %		1.22 "	1.6 A	1.11 in	28.19 mm	30.99 mm
Hammond Manufacturing 1539M14	Ferrite			Drum Core Wirewound	34 mOhm	100 µH	Through Hole	Radial Vertical Cylinder	Unshielded	10 %		1.22 "	7 A	1.11 in	28.19 mm	30.99 mm
Hammond Manufacturing 1539M22	Ferrite			Drum Core Wirewound	90 mOhm	500 µH	Through Hole	Radial Vertical Cylinder	Unshielded	10 %	38.1 mm	1.5 in	5 A	1.11 in	28.19 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.83

Description

General part information

1539 Series

250 µH Unshielded Drum Core, Wirewound Inductor 4.6 A 83mOhm Max Radial, Vertical Cylinder

Documents

Technical documentation and resources

1539 Series

Datasheet
