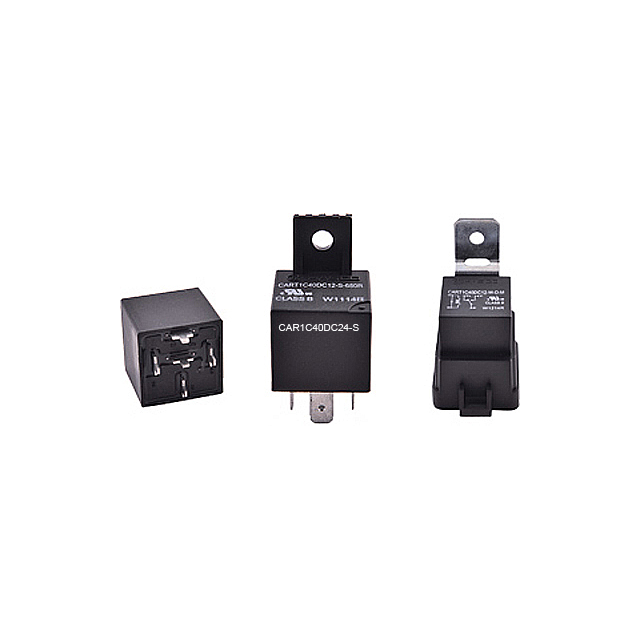

CAR1C40DC24-S
ActiveHasco Relays
CAR40 SERIES, SPDT, 40A, DC24V C
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CAR1C40DC24-S
ActiveHasco Relays
CAR40 SERIES, SPDT, 40A, DC24V C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CAR1C40DC24-S |
|---|---|
| Coil Current | 75 mA |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 40 A |
| Mounting Type | Socketable |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage [Max] | 14 VDC |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 20 | $ 2.49 | |
Description
General part information
CAR1C40 Series
CAR40 SERIES, SPDT, 40A, DC24V C
