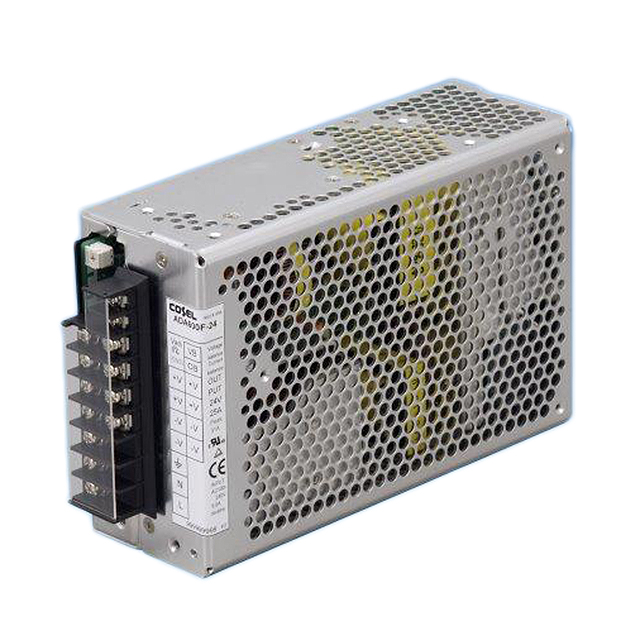

ADA600F-24-EF

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER 24V 360W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ADA600F-24-EF

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER 24V 360W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ADA600F-24-EF

Applications	ITE (Commercial)
Approval Agency	UL, TUV, cURus, CE, CSA
Current - Output 1	15 A
Efficiency	86 %
Features	DC Input Capable, PFC, Standby Output, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	600 W, 360 W
Size / Dimension [x]	195 mm
Size / Dimension [x]	7.68 "
Size / Dimension [y]	127 mm
Size / Dimension [y]	5 "
Size / Dimension [z]	65 mm
Size / Dimension [z]	2.56 in
Standard Number	60950-1, 62368-1
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

ADA600F Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Standard Number	Mounting Type	Current - Output 1	Power (Watts)	Voltage - Isolation	Type	Efficiency	Voltage - Output 1	Approval Agency	Applications	Current - Output (Max) [Max]	Input Type	Features	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Power (Watts)
Cosel USA, Inc. ADA600F-48-T	-10 °C	71 °C	195 mm	7.68 "	127 mm	65 mm	5 "	2.56 in	1	60950-1 62368-1	Chassis Mount	7 A	336 W 600 W	3000 V	Enclosed	89 %	48 V	CE CSA cURus TUV UL	ITE (Commercial)
Cosel USA, Inc. ADA600F-36-CN1	-10 °C	71 °C	195 mm	7.68 "	127 mm	65 mm	5 "	2.56 in	1	60950-1 62368-1			360 W	3000 V		87 %	36 V	CE CSA cURus TUV UL	ITE (Commercial)	10 A	AC	Adjustable Output PFC Universal Input	85 VAC	264 VAC	594 W
Cosel USA, Inc. ADA600F-48-G	-10 °C	71 °C	195 mm	7.68 "	127 mm	65 mm	5 "	2.56 in	1	60950-1 62368-1	Chassis Mount	7 A	336 W 600 W	3000 V	Enclosed	89 %	48 V	CE CSA cURus TUV UL	ITE (Commercial)
Cosel USA, Inc. ADA600F-24-F	-10 °C	71 °C	195 mm	7.68 "	127 mm	65 mm	5 "	2.56 in	1	60950-1 62368-1	Chassis Mount	15 A	360 W 600 W	3000 V	Enclosed	86 %	24 V	CE CSA cURus TUV UL	ITE (Commercial)
Cosel USA, Inc. ADA600F-24	-10 °C	71 °C	195 mm	7.68 "	127 mm	65 mm	5 "	2.56 in	1	60950-1 62368-1	Chassis Mount	15 A	360 W 600 W	3000 V	Enclosed	86 %	24 V	CE CSA cURus TUV UL	ITE (Commercial)
Cosel USA, Inc. ADA600F-24-EF	-10 °C	71 °C	195 mm	7.68 "	127 mm	65 mm	5 "	2.56 in	1	60950-1 62368-1	Chassis Mount	15 A	360 W 600 W	3000 V	Enclosed	86 %	24 V	CE CSA cURus TUV UL	ITE (Commercial)			Adjustable Output DC Input Capable PFC Standby Output Universal Input
Cosel USA, Inc. ADA600F-24-M	-10 °C	71 °C	195 mm	7.68 "	127 mm	65 mm	5 "	2.56 in	1	60950-1 62368-1	Chassis Mount	15 A	360 W 600 W	3000 V	Enclosed	86 %	24 V	CE CSA cURus TUV UL	ITE (Commercial)
Cosel USA, Inc. ADA600F-48-E	-10 °C	71 °C	195 mm	7.68 "	127 mm	65 mm	5 "	2.56 in	1	60950-1 62368-1	Chassis Mount	7 A	336 W 600 W	3000 V	Enclosed	89 %	48 V	CE CSA cURus TUV UL	ITE (Commercial)
Cosel USA, Inc. ADA600F-30-G	-10 °C	71 °C	195 mm	7.68 "	127 mm	65 mm	5 "	2.56 in	1	60950-1 62368-1	Chassis Mount	12 A	360 W 600 W	3000 V	Enclosed	87 %	30 V	CE CSA cURus TUV UL	ITE (Commercial)
Cosel USA, Inc. ADA600F-36-R	-10 °C	71 °C	195 mm	7.68 "	127 mm	65 mm	5 "	2.56 in	1	60950-1 62368-1	Chassis Mount	10 A	360 W	3000 V	Enclosed	87 %	36 V	CE CSA cURus TUV UL	ITE (Commercial)			Adjustable Output DC Input Capable PFC Remote On/Off Universal Input			594 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 389.67

Description

General part information

ADA600F Series

Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
