E1008S.25.10

Active

Prysmian Group

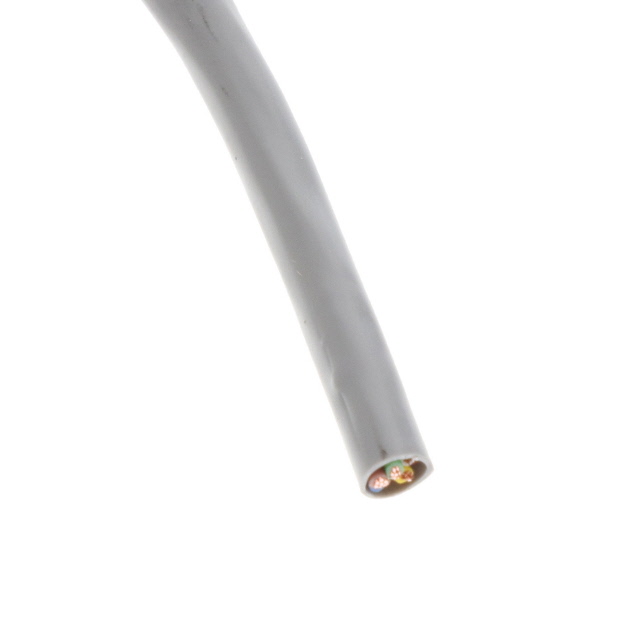

CABLE 8COND 22AWG GRAY 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 8COND 22AWG GRAY 500'

Technical Specifications

Parameters and characteristics for this part

Specification	E1008S.25.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	4.57 mm
Jacket (Insulation) Diameter [diameter]	0.18 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	8
Ratings	ASTM B-3
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket Color	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Usage	Conductor Insulation	Ratings	Voltage	Cable Type	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Jacket (Insulation) Material	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length
Prysmian Group E1008S.25.10	Gray	22 AWG	7	30 AWG	Copper Annealed Bare	Alarm Security Sound	Poly-Vinyl Chloride (PVC)	ASTM B-3	300 V	Multi-Conductor	500 '	152.4 m	0.015 in	0.381 mm	Rip Cord	Poly-Vinyl Chloride (PVC) Riser	8	4.57 mm	0.18 in
Prysmian Group E1008S.30.10	Gray	22 AWG	7	30 AWG	Copper Annealed Bare	Alarm Security Sound	Poly-Vinyl Chloride (PVC)	ASTM B-3	300 V	Multi-Conductor			0.015 in	0.381 mm	Rip Cord	Poly-Vinyl Chloride (PVC) Riser	8	4.57 mm	0.18 in	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Conductor Multi-Conductor Cable Gray 22 AWG 500.0' (152.4m)

Technical documentation and resources

No documents available
