189-025-512-571

Obsolete

MH Connectors

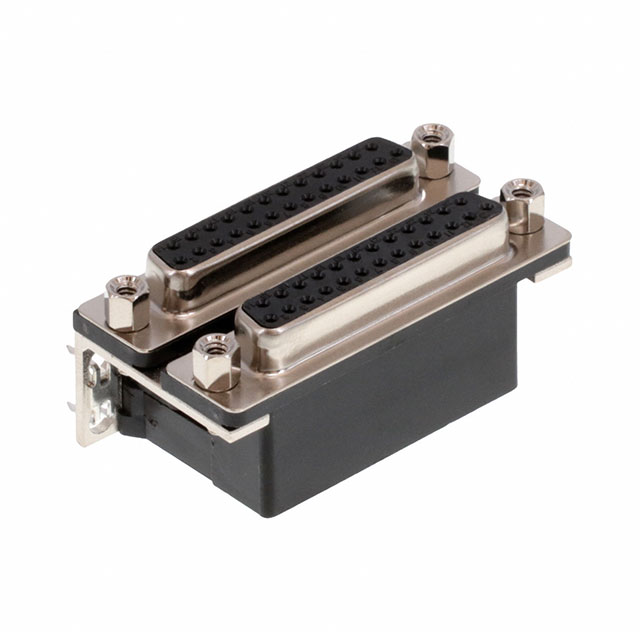

CONN D-SUB RCPT 25POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

189-025-512-571

Obsolete

MH Connectors

CONN D-SUB RCPT 25POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	189-025-512-571

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyester, Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	25
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	3 (DB, B)
Termination	Solder

189-025 Series

Part	Number of Rows	Contact Form	Termination	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Color	Current Rating (Amps)	Backset Spacing	Backset Spacing	Features	Connector Style	Contact Type	Shell Size, Connector Layout	Contact Finish	Number of Positions	Connector Type	Dielectric Material	Contact Material	Shell Material, Finish	Material Flammability Rating	Mounting Type
MH Connectors 189-025-313R571	2	Stamped	Solder	Female Screwlock (4-40) Mating Side	105 ░C	-55 °C	Flash	Black	5 A	8.08 mm	0.318 "	Board Lock Grounding Indents Shielded	D-Sub - Stacked	Signal	3 (DB B)	Gold	25	Plug Male Pins Receptacle Female Sockets	Polyamide (PA9T) Nylon 9T	Brass	Nickel Plated Steel	UL94 V-0	Panel Mount Right Angle Through Hole
MH Connectors 189-025-512-571	2		Solder	Female Screwlock (4-40) Mating Side	105 ░C	-55 °C	Flash	Black	5 A	8.08 mm	0.318 "		D-Sub - Stacked	Signal	3 (DB B)	Gold	25	Receptacle Female Sockets	Polyester Glass Filled	Brass		UL94 V-0	Panel Mount Right Angle Through Hole
MH Connectors 189-025-613R451	2	Stamped	Solder	Housing/Shell (4-40)	105 ░C	-55 °C	Flash	Black	5 A	8.08 mm	0.318 "	Grounding Indents Shielded	D-Sub - Stacked	Signal	3 (DB B)	Gold	25	Male Pins Plug	Polyamide (PA9T) Nylon 9T	Brass	Nickel Plated Steel	UL94 V-0	Panel Mount Right Angle Through Hole
MH Connectors 189-025-413R691	2	Stamped	Solder	Housing/Shell (4-40)	105 ░C	-55 °C	Flash	Black	5 A	8.08 mm	0.318 "	Board Lock Grounding Indents Shielded	D-Sub - Stacked	Signal	3 (DB B)	Gold	25	Plug Male Pins Receptacle Female Sockets	Polyamide (PA9T) Nylon 9T	Brass	Nickel Plated Steel	UL94 V-0	Panel Mount Right Angle Through Hole
MH Connectors 189-025-513R671	2	Stamped	Solder	Female Screwlock (4-40) Mating Side	105 ░C	-55 °C	Flash	Black	5 A	8.08 mm	0.318 "	Board Lock Shielded	D-Sub - Stacked	Signal	3 (DB B)	Gold	25	Receptacle Female Sockets	Polyamide (PA9T) Nylon 9T	Brass	Nickel Plated Steel	UL94 V-0	Panel Mount Right Angle Through Hole
MH Connectors 189-025-413R491	2	Stamped	Solder	Housing/Shell (4-40)	105 ░C	-55 °C	Flash	Black	5 A	8.08 mm	0.318 "	Board Lock Grounding Indents Shielded	D-Sub - Stacked	Signal	3 (DB B)	Gold	25	Plug Male Pins Receptacle Female Sockets	Polyamide (PA9T) Nylon 9T	Brass	Nickel Plated Steel	UL94 V-0	Panel Mount Right Angle Through Hole
MH Connectors 189-025-513R451	2	Stamped	Solder	Housing/Shell (4-40)	105 ░C	-55 °C	Flash	Black	5 A	8.08 mm	0.318 "	Shielded	D-Sub - Stacked	Signal	3 (DB B)	Gold	25	Receptacle Female Sockets	Polyamide (PA9T) Nylon 9T	Brass	Nickel Plated Steel	UL94 V-0	Panel Mount Right Angle Through Hole
MH Connectors 189-025-613R481	2	Stamped	Solder	Female Screwlock (4-40) Mating Side	105 ░C	-55 °C	Flash	Black	5 A	8.08 mm	0.318 "	Grounding Indents Shielded	D-Sub - Stacked	Signal	3 (DB B)	Gold	25	Male Pins Plug	Polyamide (PA9T) Nylon 9T	Brass	Nickel Plated Steel	UL94 V-0	Panel Mount Right Angle Through Hole
MH Connectors 189-025-513R481	2	Stamped	Solder	Female Screwlock (4-40) Mating Side	105 ░C	-55 °C	Flash	Black	5 A	8.08 mm	0.318 "	Shielded	D-Sub - Stacked	Signal	3 (DB B)	Gold	25	Receptacle Female Sockets	Polyamide (PA9T) Nylon 9T	Brass	Nickel Plated Steel	UL94 V-0	Panel Mount Right Angle Through Hole
MH Connectors 189-025-413R671	2	Stamped	Solder	Female Screwlock (4-40) Mating Side	105 ░C	-55 °C	Flash	Black	5 A	8.08 mm	0.318 "	Board Lock Grounding Indents Shielded	D-Sub - Stacked	Signal	3 (DB B)	Gold	25	Plug Male Pins Receptacle Female Sockets	Polyamide (PA9T) Nylon 9T	Brass	Nickel Plated Steel	UL94 V-0	Panel Mount Right Angle Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

189-025 Series

25, 25 Position D-Sub - Stacked Receptacle, Female Sockets Connector
