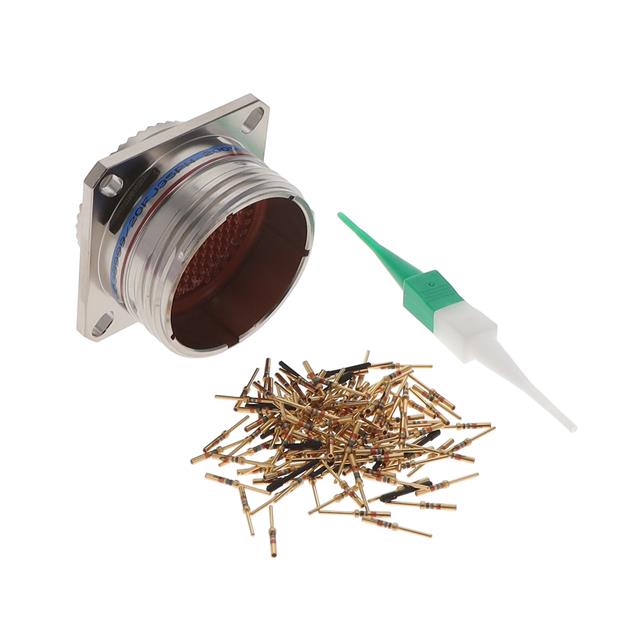

D38999/20FJ35PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 128POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20FJ35PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 128POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20FJ35PN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	128
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size, MIL	J
Shielding	Shielded
Termination	Crimp

D38999/20FJ Series

Part	Mounting Feature	Termination	Primary Material	Contact Material	Grade	Qualification	Connector Type	Shell Size, MIL	Contact Finish - Mating	Ingress Protection	Shell Size - Insert	Applications	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Shell Finish	Number of Positions [custom]	Number of Positions [custom]	Orientation	Shell Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions	Contact Type	Note	Contact Shape	Contact Size	Type	Housing Color	Contact Size	Number of Positions [custom]	Number of Positions [custom]	Contact Size [custom]	Number of Positions [custom]
Amphenol Aerospace Operations D38999/20FJ7SB	Flange	Crimp	Metal	Copper Alloy	Military	MIL-DTL-38999 Series III	Receptacle Female Sockets	J	Gold	Environment Resistant	25-7	Aviation Marine Military	Silver	-65 ░C	200 °C	1.27 µm	50 µin	Shielded	Electroless Nickel	97	2	B	Aluminum
Amphenol Aerospace Operations D38999/20FJ37PD	Flange	Crimp	Metal	Copper Alloy	Military	MIL-DTL-38999 Series III	Male Pins Receptacle	J	Gold	Environment Resistant		Aviation Marine Military	Silver	-65 ░C	200 °C	1.27 µm	50 µin	Shielded	Electroless Nickel			D	Aluminum	37	25	37
Amphenol Aerospace Operations D38999/20FJ4HB-LC	Flange				Military	MIL-DTL-38999 Series III	Receptacle Housing	J		Environment Resistant				-65 ░C	200 °C			Shielded	Electroless Nickel			B	Aluminum	4	25	56	Crimp	Contacts Not Included	Circular	16 (8) 20 (48)	For Male Pins	Silver
Amphenol Aerospace Operations D38999/20FJ24SB-LC	Flange				Military	MIL-DTL-38999 Series III	Receptacle Housing	J		Environment Resistant				-65 ░C	200 °C			Shielded	Electroless Nickel			B	Aluminum	24	25	24	Crimp	Contacts Not Included	Circular		For Female Sockets	Silver	12 16
Amphenol Aerospace Operations D38999/20FJ35PN	Flange	Crimp	Metal	Copper Alloy	Military	MIL-DTL-38999 Series III	Male Pins Receptacle	J	Gold	Environment Resistant		Aerospace Aviation Marine Military	Silver	-65 ░C	200 °C	1.27 µm	50 µin	Shielded	Electroless Nickel			N	Aluminum			128
Amphenol Aerospace Operations D38999/20FJ46AA	Flange				Military	MIL-DTL-38999 Series III	Receptacle Housing	J		Environment Resistant				-65 ░C	200 °C			Shielded	Electroless Nickel			A	Aluminum	46	25		Crimp	Contacts Not Included	Circular		For Male Pins	Silver	16 20	44	2	8
Amphenol Aerospace Operations D38999/20FJ7SB-LC	Flange				Military	MIL-DTL-38999 Series III	Receptacle Housing	J		Environment Resistant	25-7			-65 ░C	200 °C			Shielded	Electroless Nickel	97		B	Aluminum			99	Crimp	Contacts Not Included	Circular	22D (97) 8 Twinax (2)	For Female Sockets	Silver					2
Amphenol Aerospace Operations D38999/20FJ20SD	Flange	Crimp	Metal	Copper Alloy	Military	MIL-DTL-38999 Series III	Receptacle Female Sockets	J	Gold	Environment Resistant		Aviation Marine Military	Silver	-65 ░C	200 °C	1.27 µm	50 µin	Shielded	Electroless Nickel		4	D	Aluminum	25	20									23			3
Amphenol Aerospace Operations D38999/20FJ4PN-LC	Flange				Military	MIL-DTL-38999 Series III	Receptacle Housing	J		Environment Resistant				-65 ░C	200 °C			Shielded	Electroless Nickel			N	Aluminum	4	25	56	Crimp	Contacts Not Included	Circular	16 (8) 20 (48)	For Male Pins	Silver
Amphenol Aerospace Operations D38999/20FJ61BN	Flange				Military	MIL-DTL-38999 Series III	Receptacle Housing	J		Environment Resistant				-65 ░C	200 °C			Shielded	Electroless Nickel			N	Aluminum	61	25	61	Crimp	Contacts Not Included	Circular		For Female Sockets	Silver	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 457.44
		10	$ 360.48
		25	$ 329.95

Description

General part information

D38999/20FJ Series

128 Position Circular Connector Receptacle, Male Pins Crimp
