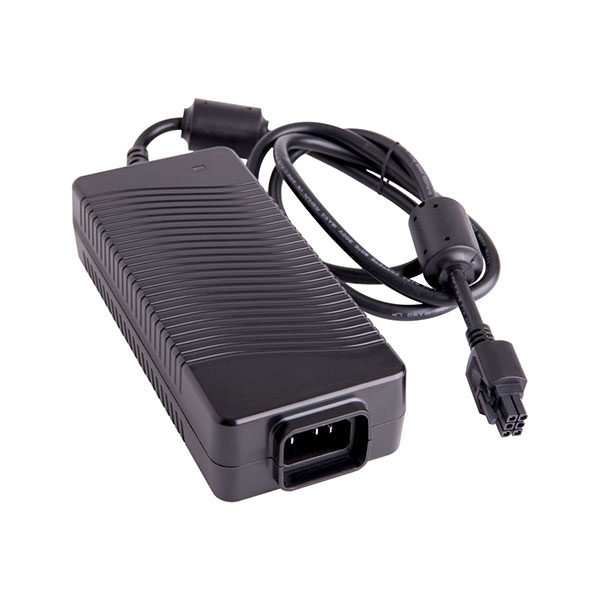

ME150A1251N01

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 12V 150W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 12V 150W

Technical Specifications

Parameters and characteristics for this part

Specification	ME150A1251N01

Applications	Medical
Approval Agency	CE
Current - Output (Max) [Max]	12.5 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Output Connector	Rectangular, 6 Position
Power (Watts)	150 W
Region Utilized	International
Size / Dimension [x]	174 mm
Size / Dimension [x]	6.85 in
Size / Dimension [y]	2.83 in
Size / Dimension [y]	71.9 mm
Size / Dimension [z]	1.5 "
Size / Dimension [z]	38.1 mm
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output	12 V
Weight	700 g
Weight	1.543 lb

Part	Current - Output (Max) [Max]	Input Connector	Weight	Weight	No Load Power Consumption [Max]	Output Connector	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Applications	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]	Form	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Region Utilized	Efficiency
SL POWER / Advanced Energy ME150A1251N01	12.5 A	IEC 320-C8	700 g	1.543 lb	150 mW	Rectangular 6 Position	2.83 in	71.9 mm	1.5 "	174 mm	38.1 mm	6.85 in	CE	Medical	12 V	50 °C	-20 C	Desktop (Class II)	Cord	240 VAC	100 VAC	150 W	International	CoC Tier 2 Level VI
SL POWER / Advanced Energy ME150A1251F01	12.5 A	IEC 320-C14	700 g	1.543 lb	150 mW	Rectangular 6 Position	2.83 in	71.9 mm	1.5 "	174 mm	38.1 mm	6.85 in	CE	Medical	12 V	50 °C	-20 C	Desktop (Class I)	Cord	240 VAC	100 VAC	150 W	International	CoC Tier 2 Level VI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 81.94

General part information

12V 150 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
