S89R11DAC1-12

Obsolete

TE Connectivity Potter & Brumfield Relays

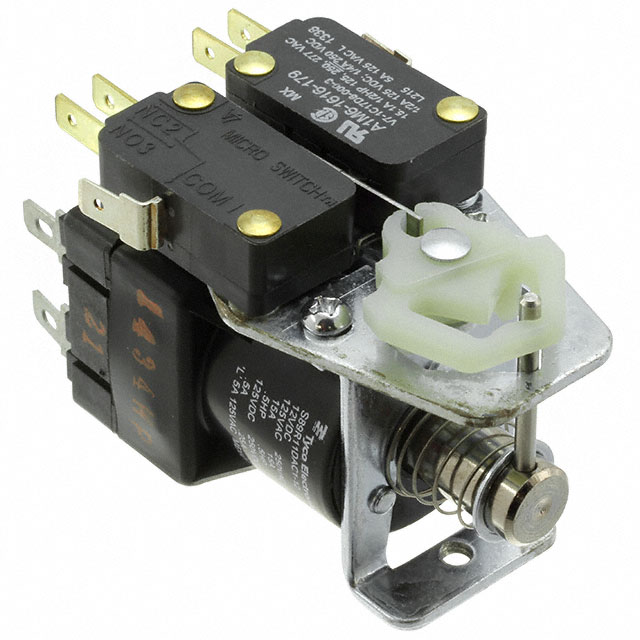

RELAY IMPULSE DPDT 15A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S89R11DAC1-12

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY IMPULSE DPDT 15A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S89R11DAC1-12

Approval Agency	CSA, UR
Coil Current	533 mA
Coil Insulation	Class B
Coil Resistance	22.5 Ohms
Coil Type	Latching, Single Coil
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	15 A
Load - Max Switching	4155 VA
Mounting Type	Chassis Mount
Must Operate Voltage	9 VDC
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Relay Type	Impulse
Switching Voltage [Max]	277 VAC
Termination Style	Quick Connect - 0.187" (4.7mm)

S89R11 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching	Termination Style	Coil Current	Coil Resistance	Coil Voltage	Contact Form	Coil Type	Coil Insulation	Must Operate Voltage	Relay Type	Approval Agency	Switching Voltage [Max]	Mounting Type	Contact Rating (Current)
TE Connectivity Potter & Brumfield Relays S89R11DAC1-12	-10 °C	60 °C	4155 VA	Quick Connect - 0.187" (4.7mm)	533 mA	22.5 Ohms	12 VDC	DPDT (2 Form C)	Latching Single Coil	Class B	9 VDC	Impulse	CSA UR	277 VAC	Chassis Mount	15 A
TE Connectivity Potter & Brumfield Relays S89R11DBD1-12	-10 °C	60 °C	4155 VA	Quick Connect - 0.250" (6.3mm)	533 mA	22.5 Ohms	12 VDC	DPDT (2 Form C)	Latching Single Coil	Class B	9 VDC	Impulse	CSA UR	277 VAC	Chassis Mount	15 A
TE Connectivity Potter & Brumfield Relays S89R11ABD1-120	-10 °C	60 °C	4155 VA	Quick Connect - 0.250" (6.3mm)	75 mA	260 Ohms	120 VAC	DPDT (2 Form C)	Latching Single Coil	Class B	102 VAC	Impulse	CSA UR	277 VAC	Chassis Mount	15 A
TE Connectivity Potter & Brumfield Relays S89R11DPP1-12	-10 °C	60 °C	4155 VA	Plug In 8 Pin (Octal)	533 mA	22.5 Ohms	12 VDC	DPDT (2 Form C)	Latching Single Coil	Class B	9 VDC	Impulse	CSA UR	277 VAC	Socketable	15 A
TE Connectivity Potter & Brumfield Relays S89R11DAC1-6	-10 °C	60 °C	4155 VA	Quick Connect - 0.187" (4.7mm)	1 A	5.8 Ohms		DPDT (2 Form C)	Latching Single Coil	Class B	4.5 VDC	Impulse	CSA UR	277 VAC	Chassis Mount	15 A
TE Connectivity Potter & Brumfield Relays S89R11APP1-24	-10 °C	60 °C	4155 VA	Plug In 8 Pin (Octal)	375 mA	8.7 Ohms	24 VAC	DPDT (2 Form C)	Latching Single Coil	Class B		Impulse	CSA UR	277 VAC	Socketable	15 A
TE Connectivity Potter & Brumfield Relays S89R11AAC1-240	-10 °C	60 °C	4155 VA	Quick Connect - 0.187" (4.7mm)	38 mA	1.08 kOhms	240 VAC	DPDT (2 Form C)	Latching Single Coil	Class B	204 VAC	Impulse	CSA UR	277 VAC	Chassis Mount	15 A
TE Connectivity Potter & Brumfield Relays S89R11DAC1-24	-10 °C	60 °C	4155 VA	Quick Connect - 0.187" (4.7mm)	260 mA	92 Ohms	24 VDC	DPDT (2 Form C)	Latching Single Coil	Class B	18 VDC	Impulse	CSA UR	277 VAC	Chassis Mount	15 A
