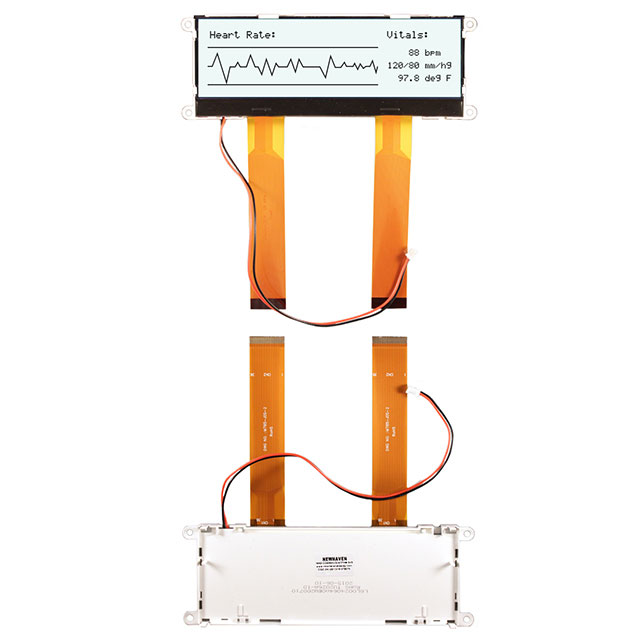

NHD-C24064WO-ATFH#-3V3

Obsolete

Newhaven Display Intl

LCD COG GRAPH 240X64 WH TRANSFL

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

LCD COG GRAPH 240X64 WH TRANSFL

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-C24064WO-ATFH#-3V3

Background Color	White
Background Color	Black
Backlight	LED - White
Controller Type	ST-7565S (2)
Display Mode	Transflective
Display Type	FSTN - Film Super-Twisted Nematic
Dot Pitch [x]	0.53 mm
Dot Pitch [y]	0.53 mm
Dot Pixels [x]	240 pixels
Dot Pixels [y]	64
Dot Size [x]	0.5 mm
Dot Size [y]	0.5 mm
Graphics Color	Black
Interface	Parallel/Serial
Viewing Area [x]	130.2 mm
Viewing Area [y]	37.6 mm

Part	Viewing Area [y]	Viewing Area [x]	Display Type	Dot Size [y]	Dot Size [x]	Dot Pitch [y]	Dot Pitch [x]	Backlight	Dot Pixels [y]	Dot Pixels [x]	Graphics Color	Controller Type	Background Color	Background Color	Interface	Display Mode
Newhaven Display Intl NHD-C24064WO-ATFH#-3V3	37.6 mm	130.2 mm	FSTN - Film Super-Twisted Nematic	0.5 mm	0.5 mm	0.53 mm	0.53 mm	LED - White	64	240 pixels	Black	ST-7565S (2)	White	Black	Parallel/Serial	Transflective

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Transflective Black (White - Inverted) FSTN - Film Super-Twisted Nematic Parallel/Serial 240 x 64
