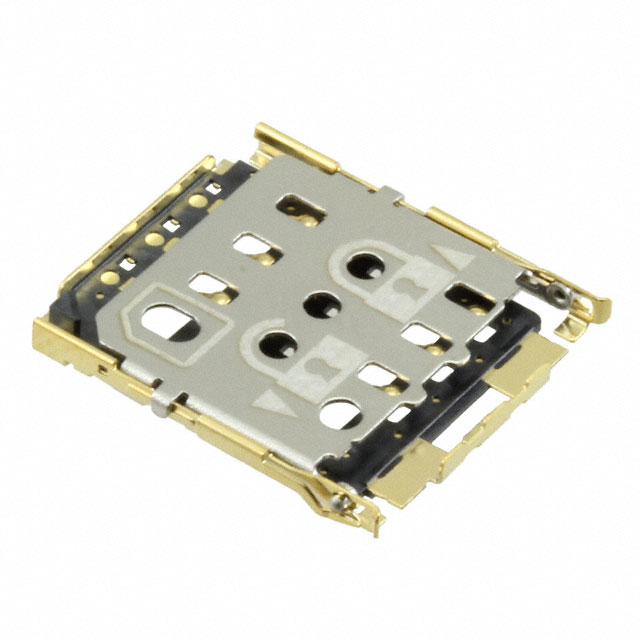

SF15W006S4BR2000
ActiveJAE Electronics
MICROSIM HINGE STYLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF15W006S4BR2000
ActiveJAE Electronics
MICROSIM HINGE STYLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF15W006S4BR2000 |
|---|---|
| Card Type | Micro SIM |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | 19.7 µin |
| Contact Finish Thickness | 0.5 µm |
| Height Above Board [z] | 0.061 " |
| Height Above Board [z] | 1.55 mm |
| Insertion, Removal Method | Hinged Lid |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.38 | |
| 10 | $ 1.82 | |||
| 25 | $ 1.63 | |||
| 50 | $ 1.51 | |||
| 100 | $ 1.40 | |||
| 250 | $ 1.27 | |||
| 500 | $ 1.18 | |||
| 1000 | $ 1.10 | |||
| Digi-Reel® | 1 | $ 2.38 | ||
| 10 | $ 1.82 | |||
| 25 | $ 1.63 | |||
| 50 | $ 1.51 | |||
| 100 | $ 1.40 | |||
| 250 | $ 1.27 | |||
| 500 | $ 1.18 | |||
| 1000 | $ 1.10 | |||
| Tape & Reel (TR) | 2000 | $ 1.02 | ||
| 4000 | $ 0.96 | |||
| 6000 | $ 0.92 | |||
| 10000 | $ 0.90 | |||
Description
General part information
SF15W006 Series
6 Position Card Connector Micro SIM Surface Mount, Right Angle Gold
Documents
Technical documentation and resources
