DC37-PL-25

Active

Adam Tech

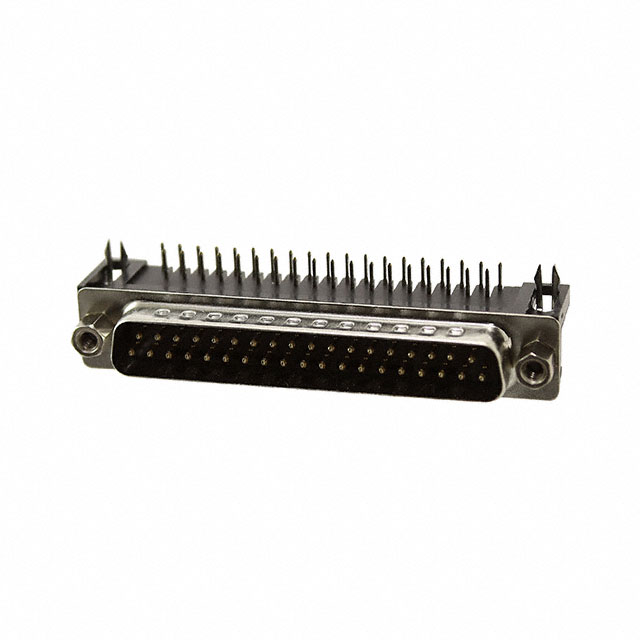

CONN D-SUB PLUG 37POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

DC37-PL-25

Active

Adam Tech

CONN D-SUB PLUG 37POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC37-PL-25

Backset Spacing	0.319 in
Backset Spacing	8.1 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Copper Alloy
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder
Voltage Rating	250 VAC

DC37 Series

Part	Shell Size, Connector Layout	Backset Spacing	Backset Spacing	Contact Finish	Current Rating (Amps)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Connector Type	Connector Style	Contact Form	Material Flammability Rating	Flange Feature	Contact Material	Number of Positions	Termination	Dielectric Material	Color	Voltage Rating	Features	Contact Finish Thickness	Shell Material, Finish	Wire Gauge [Max]	Wire Gauge [Min]
Adam Tech DC37-SL-25	4 (DC C)	0.319 in	8.1 mm	Gold	3 A	Through Hole Right Angle	105 ░C	-55 °C	2	Receptacle Female Sockets	D-Sub	Stamped	UL94 V-0	Female Screwlock (4-40) Mating Side	Copper Alloy	37	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Black	250 VAC
Adam Tech DC37-PL-25	4 (DC C)	0.319 in	8.1 mm	Gold		Through Hole Right Angle	105 ░C	-40 °C	2	Male Pins Plug	D-Sub	Stamped	UL94 V-0	Female Screwlock (4-40) Mating Side	Copper Alloy	37	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Black	250 VAC	Board Lock Grounding Indents	Flash	Steel
Adam Tech DC37-PR	4 (DC C)			Gold		Free Hanging (In-Line)	105 ░C	-55 °C	2	Male Pins Plug	D-Sub		UL94 V-0	Housing/Shell (Unthreaded)	Copper Alloy	37	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Black		Grounding Indents	Flash
Adam Tech DC37-SF-M2	4 (DC C)			Gold	5 A	Free Hanging (In-Line)	125 °C	-65 ░C	2	Receptacle Female Sockets	D-Sub		UL94 V-0	Housing/Shell (4-40)	Phosphor Bronze	37	IDC Ribbon Cable	Polybutylene Terephthalate (PBT) Glass Filled	Black	250 VAC		Flash		30 AWG	27.5 AWG
Adam Tech DC37-ST-1-SL	4 (DC C)			Gold	5 A	Through Hole	125 °C	-65 ░C	2	Receptacle Female Sockets	D-Sub		UL94 V-0	4-40 Board Side	Phosphor Bronze	37	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Black	250 VAC		Flash
Adam Tech DC37-SD	4 (DC C)			Gold	3 A	Free Hanging (In-Line)	85 °C	-20 C	2	Receptacle Female Sockets	D-Sub	Stamped	UL94 V-0	Housing/Shell (Unthreaded)	Copper Alloy	37		Polybutylene Terephthalate (PBT) Glass Filled	Black	250 VAC		Flash
Adam Tech DC37-ST-2	4 (DC C)			Gold	5 A	Through Hole	125 °C	-55 °C	2	Receptacle Female Sockets	D-Sub		UL94 V-0	Housing/Shell (4-40)	Brass	37	Wire Wrap	Thermoplastic Glass Filled	Black	600 V		Flash	Nickel Plated Steel
Adam Tech DC37-SR	4 (DC C)			Gold		Free Hanging (In-Line)	105 ░C	-55 °C	2	Receptacle Female Sockets	D-Sub	Stamped	UL94 V-0	Housing/Shell (Unthreaded)	Copper Alloy	37	Crimp	Polybutylene Terephthalate (PBT) Glass Filled	Black	250 VAC		Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.01
